Winches haydarooliga durbaanada badansi weyn ayaa loo isticmaalaa gudahamarkab kalluumaysi.Waxaanu samaynaynay oo aanu samaynaynay noocyadan winches muddo labaatan sano ah.Waxka bedelka la habeeyay ee maraakiibta kalluumeysiga ee kala duwan ayaa si sahal ah loo gaari karaa.Winches-yadu waxay ku qabtaan hawlkarnimo sare, adkeysi weyn iyo kalsooni sare.Waxa loo dhisay inay la kulmaan duruufo shaqo oo badweyneed oo xad dhaaf ah.

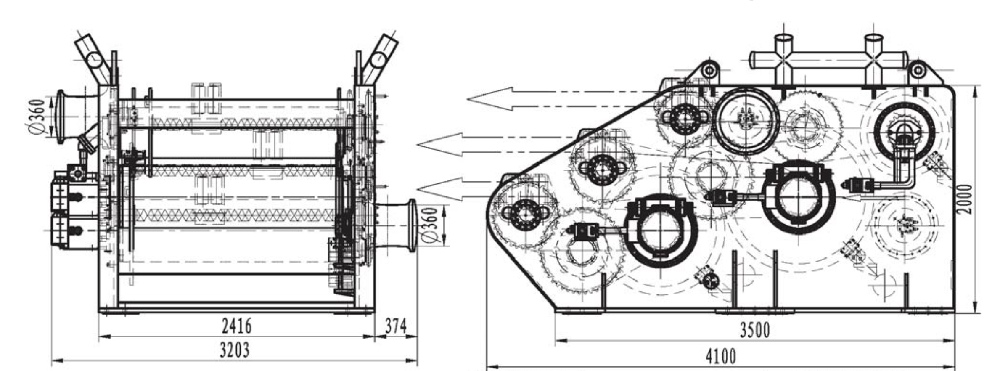

Qaabaynta Makaanikada:
| Tilmaamaha ugu weyn ee Capstan | Sifeynta ugu weyn ee durbaanka | ||
| Jiid Shaqaale (KN) | 60 | Lakabka Shanaad (KN) ee Shaqada lagu qiimeeyay | 100 |
| Xawaaraha shaqada (m/min) | 15 | Xawaaraha lakabka shanaad (m/min) | 60 |
| Barokaca (ml/r) | 5628 | Barokaca durbaanka (ml/r) | 10707.69 |
| Cadaadiska Nidaamka lagu qiimeeyay (MPa) | 18 | Cadaadiska Nidaamka lagu qiimeeyay (MPa) | 26 |
| Kala duwanaanshaha Cadaadiska Shaqada.(MPa) | 16 | Kala duwanaanshaha Cadaadiska Shaqada.(MPa) | 24 |
| Dhexroorka Xadhiga (mm) | 20-24 | Dhexroorka Xadhiga (mm) | 22 |
| Socodka bamka (L/daqiiqo) | 78 | Tirada Lakabyada Xadhigga | 5 |
| Planetary Gearbox Nooca | C34 (i=28) | Awoodda Xadhiga Durbaanka (m) | 600 |
| Nooca Baabuurta Haydarooliga | INM1-200D12022 | Pump Max.Socodka (L/min) | 353 |
| Planetary Gearbox Nooca | IGTW3-B67 (i=66.923) | ||
| Nooca Baabuurta Haydarooliga | A2FE160 / 6.1 WVZL10D480111 | ||
| Awood | 147 | ||
| Durba Dhexe Qeexida ugu weyn | Hoosta Tilmaamaha Guud ee Durbaanka | ||||
| Lakabka Shanaad (KN) ee Shaqada lagu qiimeeyay | 200 | 100 | Lakabka Shanaad (KN) ee Shaqada lagu qiimeeyay | 200 | 100 |
| Xawaaraha lakabka shanaad (m/min) | 30 | 60 | Xawaaraha lakabka shanaad (m/min) | 30 | 60 |
| Barokaca durbaanka (ml/r) | 23957 | 11978.8 | Barokaca durbaanka (ml/r) | 23957 | 11978.8 |
| Cadaadiska Nidaamka lagu qiimeeyay (MPa) | 26.5 | Cadaadiska Nidaamka lagu qiimeeyay (MPa) | 26.5 | ||
| Kala duwanaanshaha Cadaadiska Shaqada.(MPa) | 24.5 | Kala duwanaanshaha Cadaadiska Shaqada.(MPa) | 24.5 | ||
| Dhexroorka Xadhiga (mm) | 24 | Dhexroorka Xadhiga (mm) | 24 | ||
| Tirada Lakabyada Xadhigga | 10 | Tirada Lakabyada Xadhigga | 6 | ||
| Awoodda Xadhiga Durbaanka (m) | 1800 | Awoodda Xadhiga Durbaanka (m) | 900 | ||
| Pump Max.Socodka (L/min) | 332 | Pump Max.Socodka (L/min) | 332 | ||
| Planetary Gearbox Nooca | IGT110W3-B96(i=95.828) | Planetary Gearbox Nooca | IGT110W3-B96(i=95.828) | ||
| Nooca Baabuurta Haydarooliga | HLASM250MA-125 | Nooca Baabuurta Haydarooliga | HLASM250MA-125 | ||
| Awood | 147 | Awood | 147 | ||
