Key Takeaways

• Post-Panamax vessels (280m+ LOA, 80,000+ DWT) require mooring winches with minimum 150kN line pull at the first rope layer, with 200-250kN preferred for new deepwater terminals
• Monsoonal wind loads in the South China Sea and Andaman Sea add 40-80kN to effective mooring force requirements, requiring 20-30% higher line pull specification than sheltered-water calculations
• Synthetic rope configurations require 25-30% more drum capacity than wire rope due to larger diameter, elastic stretch, and fleet angle accommodation needs
• Tropical hydraulic management demands 15-20% oversized reservoirs, tropical-rated fluid, and heat exchangers sized for 40C sustained ambient—not standard 25C assumptions
• 500-hour maintenance intervals with ISO 4406 Class 18/15 hydraulic oil cleanliness prevent the 12-18% annual efficiency degradation that otherwise accumulates in high-throughput terminals

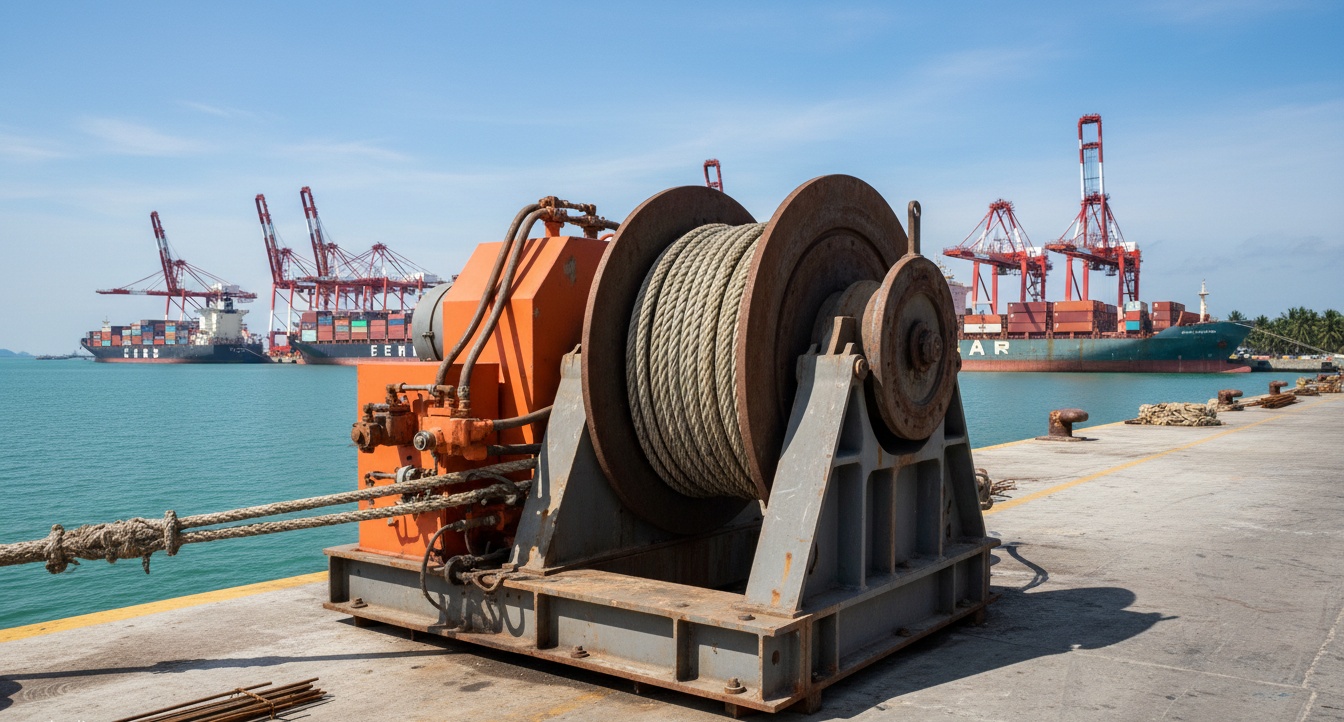

I've been asked the same procurement question in different ways by port developers and terminal operators across Singapore, Laem Chabang, Ho Chi Minh City, and Manila: "How do we spec mooring winches for our expansion if we don't yet know exactly what vessel sizes will call?" The question reveals a real tension in port investment planning—we're building infrastructure with 30-50 year service lives based on vessel fleet projections that may shift significantly as global trade patterns evolve.

SOLAS Chapter V. mooring winches.After four years of supporting port equipment procurement for marine, offshore, and construction machinery buyers across Southeast Asia, I've developed a framework that I think handles this uncertainty better than the traditional approach of simply overspecifying everything. The key insight is that two parameters—line pull capacity and drum storage capacity—are where over-specification is genuinely expensive (larger hydraulic systems, bigger foundations, higher procurement costs) versus other mooring winch specifications where adding margin is relatively low cost and good insurance.

In this article, I'm going to walk you through how line pull and drum capacity interact with Southeast Asian port operating conditions, how to spec these parameters for different terminal development scenarios, and what maintenance realities will determine whether your mooring winches deliver reliable service over a 25-year operational horizon.

The Line Pull Calculation Problem in Southeast Asian Port Environments

When I explain line pull specification to port engineering teams, I usually start by making sure we agree on what line pull actually means in the context of mooring winch selection—because I've seen procurement specifications written by engineers who conflated maximum line pull with sustained holding force, which are meaningfully different performance characteristics.

Maximum line pull is the peak force the winch can apply at the first rope layer during tensioning operations. This is a short-duration rating (typically measured over 1-2 minutes) that reflects the capacity of the hydraulic system and the strength rating of the wire rope.

Sustained holding force is the force the winch brake can maintain indefinitely without slippage, under the maximum designed mooring load. This is a function of the brake system design, the gear ratio, and the mechanical advantage of the winch drum-gear system.

For port mooring applications, we care primarily about sustained holding force because that's what the winch must maintain when a vessel is moored against wind, current, and wave action for hours or days. The maximum line pull matters during the tensioning phase when the mooring line is being set, but once set, the winch operates in a holding mode where brake performance is the limiting factor.

Environmental Load Determination for Southeast Asian Waters

The environmental design loads for mooring winches in Southeast Asian ports are determined by a combination of wind, current, and wave action specific to the port location. Unlike European ports where comprehensive historical metocean data is often available for decades, many newer Southeast Asian terminal developments face the challenge of designing against environmental loads based on shorter data records or regional wind and wave atlases.

For the major port regions in Southeast Asia, I've compiled the following practical design parameters based on my experience supporting procurement for terminal developments in these areas and the published data from regional maritime safety authorities:

• Singapore Strait and Johor Strait approaches: Design wind speed of 25m/s (sustained) for mooring design, with storm conditions requiring consideration up to 35m/s. Current velocities of 2-3 knots in main shipping channels. Wave action generally limited by harbor breakwaters but fetch-limited waves in open approach channels can generate 0.5-1.0m significant wave height during monsoon transitions
• Laem Chabang (Thailand): Gulf of Thailand monsoon patterns create 6-month wind cycles with design wind of 22m/s for mooring during northeast monsoon (November-February) when northeast winds predominate. Wave fetch across the gulf can generate 1.0-1.5m waves at exposed berths during strong monsoon conditions
• Ho Chi Minh City (Vietnam): Mekong Delta location creates relatively sheltered conditions in the Saigon River approach but exposed berths at Cat Lai and new Cai Mep terminals face South China Sea conditions with design winds of 25-28m/s during typhoon proximity events. Current velocities up to 3.5 knots during flood tide
• Manila Bay (Philippines): Bay location provides partial shelter but typhoon exposure during Northwest monsoon season (October-February) requires design wind of 30m/s for new terminal developments. The Philippines is in the western Pacific typhoon track, making typhoon-generated wind and wave loads the dominant design case

When calculating line pull requirements for mooring winch specification, we use a deterministic approach: identify the maximum vessel to be moored at the terminal, calculate the environmental mooring force using PIANC Publication 123 or equivalent mooring analysis methodology, then select winch line pull as 1.5x the calculated maximum environmental force to provide adequate safety margin.

For post-Panamax vessels (defined as vessels with LOA exceeding 290m and deadweight tonnage above 80,000 DWT) calling at new Southeast Asian deepwater terminals, the calculated mooring force in the scenarios above typically ranges from 100-130kN per line under design environmental conditions, which means we specify winches with 150-200kN sustained holding force per mooring point. This is why I've seen procurement specifications that call for 150kN winches for what appears to be a modest-sized terminal—it's actually correctly calculated once you work through the environmental loading for these specific operating waters.

First Layer Line Pull Versus Brake Holding Force: The Specification Trap

Here's a technical nuance that catches procurement managers who aren't marine equipment specialists: most winch manufacturers quote line pull capacity at the first rope layer, but the sustained holding force of the brake system—which is what actually keeps the vessel moored in sustained wind conditions—is typically 70-85% of the first-layer line pull rating.

The reason is mechanical advantage. When rope is wound onto the drum, each successive layer increases the effective radius, which means each revolution takes up more rope but generates less tension per revolution. A winch rated for 150kN at the first layer might only hold 110-120kN when the drum is half-full of rope. This is normal and expected—but it means your specification should be based on the first-layer line pull to guarantee that the brake holding force at normal operating conditions (typically 3-5 wraps, where the system has stabilized) remains adequate for the design mooring load.

I learned this distinction the hard way when a new terminal developer in the Philippines asked me to explain why his procurement specification for 150kN winches was producing brake holding forces that didn't meet his mooring analysis requirements at the working rope layer. The winch was correctly specified—it was his specification methodology that had the error, confusing first-layer line pull with sustained brake holding force.

Drum Capacity: The Engineering Calculation Behind the Numbers

Drum capacity is the second parameter where procurement specifications require careful engineering attention, and unlike line pull where the key issue is understanding the rating methodology, drum capacity involves a genuine mechanical calculation that must be matched to the specific mooring arrangement planned for the terminal.

The fundamental calculation for drum storage length is:

Required drum length = (Required rope length x rope diameter) / (pi x mean drum diameter)

With an additional constraint that a minimum of 3 rope wraps must remain on the drum when the winch is at maximum payload condition, regardless of how much rope has been paid out for the mooring configuration.

For wire rope mooring configurations—which remain the dominant standard for port mooring despite the growing use of synthetic ropes in some applications—the required rope length depends on the mooring arrangement geometry: the distance from the winch drum location to the fairlead, the lead angle, the number of turns in the mooring line path, and the desired scope (the ratio of rope length to water depth at the berth).

Wire Rope Versus Synthetic Rope: Different Capacity Implications

The choice between wire rope and synthetic rope (typically polyester or HMPE/Dyneema) for port mooring applications has significant implications for drum capacity specification, and I've seen terminals that planned for wire rope specifications but awarded contracts to suppliers who quoted synthetic rope configurations—and discovered at equipment arrival that the drum dimensions were inadequate for the alternate rope type.

The capacity implications of the wire-versus-synthetic choice are:

• Wire rope: Higher breaking strength per unit diameter means smaller drum dimensions for equivalent mooring load capacity. A 28mm steel wire rope with breaking strength of 420kN can be replaced by synthetic rope requiring approximately 40mm diameter to achieve equivalent load capacity. The larger synthetic rope diameter means more wraps required per unit length, directly increasing drum length requirements by approximately 25-30%
• Synthetic rope elastic stretch: HMPE ropes can stretch 2-3% at working loads (versus less than 0.5% for steel wire), requiring larger fleet angle accommodation in the mooring lead geometry. This doesn't directly affect drum capacity but affects the overall mooring arrangement layout, which must be accounted for in berth design
• Synthetic rope aging: UV exposure and cyclic loading cause synthetic rope stiffness changes over 3-5 year service life, requiring replacement before the rope reaches its theoretical breaking strength threshold. Wire rope, while requiring periodic inspection and recoring, can provide 8-12 year service life in port mooring applications with appropriate maintenance

For my money, the wire rope versus synthetic rope choice should be resolved before the mooring winch procurement specification is finalized, because changing the rope type after equipment procurement typically requires either different drum specifications (for larger synthetic rope) or acceptance of reduced mooring capacity (if wire rope is replaced by smaller-diameter synthetic that doesn't match the original design loads).

Drum Width Specification for Multi-Layer Winding

Port mooring winches typically use multi-layer winding on the drum to achieve the required rope storage within reasonable drum dimension constraints. Multi-layer winding introduces complexity that must be accounted for in the specification:

• Layer transition forces: When the rope transitions from one layer to the next (as the drum fills), the rope experiences additional bending stresses that can reduce rope service life if the transition is abrupt. Good winch designs incorporate a smooth flanged transition geometry that prevents the wrap from dropping into the gap between layers
• Pack density variation: Multi-layer winding produces variable pack density as rope cross-section interacts with the underlying rope layers. The first layer typically has the tightest pack; outer layers can be less uniform. This doesn't affect holding force but does affect how much rope fits in a given drum length
• Rope lifetime consideration: Rope in the lower layers (first and second layer) of a multi-layer wound drum experiences the most cycles during normal operation, as these layers are paid out and hauled in repeatedly. Rope in outer layers may remain in storage for extended periods. Inspection and replacement planning should account for this differential wear pattern

Hydraulic System Configuration for Tropical Port Operating Conditions

I've written before about the specific challenges that tropical ambient conditions create for hydraulic systems in marine equipment, and mooring winches are a category where these challenges are particularly acute because of the duty cycle patterns—long periods in standby holding mode punctuated by short tensioning operations that demand high hydraulic flow rates.

The tropical operating environment in Southeast Asian ports—where ambient temperatures regularly reach 30-35C in the dry season and exceed 35C during the pre-monsoon hot period (March-May)—creates hydraulic system design requirements that differ significantly from the standard European design assumptions that many equipment specifications are based on.

Because hydraulic oil viscosity is temperature-dependent, and hydraulic pump efficiency is optimized for specific viscosity ranges, operating at elevated temperatures without appropriate system configuration results in measurably reduced system efficiency. At 60C oil temperature (which can occur in inadequately specified systems operating in 35C ambient), hydraulic pump efficiency can be 8-12% lower than at the nominal 45C operating temperature, directly reducing the winch's available line pull below specification values.

Thermal Management: The Oversized Reservoir Strategy

The most cost-effective approach to thermal management in tropical hydraulic mooring winch applications is specifying an oversized hydraulic reservoir. The reservoir serves three thermal management functions: it provides a heat dissipation surface, it provides hydraulic oil volume for thermal expansion and contraction cycles, and it provides a sufficient oil volume to prevent oil starvation during high-flow operations.

For tropical port applications, I recommend reservoir sizing of 1.15-1.20x the standard manufacturer specification. This modest oversizing provides meaningful thermal margin without the cost and footprint penalties of more complex active cooling systems. Combined with a properly sized heat exchanger (see below), this configuration maintains hydraulic oil temperatures within acceptable operating ranges even during the peak ambient temperature months.

Heat Exchanger Sizing for 40C Design Ambient

Standard hydraulic system heat exchangers are typically sized for 25C ambient design conditions—the European "room temperature" assumption. For Southeast Asian tropical port environments, heat exchangers must be resized for 40C sustained ambient temperature, which increases the required heat exchanger capacity by approximately 40-50% compared to standard sizing.

The heat load calculation for a hydraulic mooring winch system follows this basic approach:

• System input power: The hydraulic pump motor power, typically stated on the winch nameplate (e.g., 45kW for a mid-size port mooring winch)
• System efficiency: Combined efficiency of pump, motor, valves, and cylinders, typically 0.65-0.75 for a well-maintained system
• Heat dissipation requirement: (Input power x (1 - system efficiency)) x duty cycle factor. For mooring winches with intermittent operation, the duty cycle factor is typically 0.25-0.35, meaning only 25-35% of input power is dissipated as heat over a typical operating cycle
• Heat exchanger selection: Required heat exchanger capacity = Heat dissipation requirement / (design delta-T between oil and ambient). At 40C ambient with 55C maximum oil temperature target, the delta-T is 15C versus 30C at 25C ambient, requiring 2x the heat exchanger capacity for equivalent heat dissipation

What this means practically: if you're specifying mooring winches for a new Southeast Asian terminal and the supplier's standard heat exchanger is sized for 25C ambient, expect to pay a 15-25% cost premium for the tropical-rated heat exchanger package. This is not optional—terminals that accept standard temperate-climate hydraulic configurations routinely experience thermal throttling during peak summer months when their mooring winches simply cannot deliver rated performance on the hottest days.

Maintenance Planning: The 500-Hour Protocol for High-Throughput Terminals

When I talk to port operators during the procurement phase, maintenance is often a secondary consideration to procurement cost. I understand the commercial logic, but I've also seen the results when maintenance is genuinely deprioritized: hydraulic systems that accumulate efficiency degradation, brakes that wear beyond safe limits, and winches that fail at the worst possible moment—during a typhoon approach when the mooring system is under maximum stress.

For port terminals handling 50 or more vessel calls per month, I recommend the following maintenance protocol for hydraulic mooring winches:

• 500-hour hydraulic oil analysis: Sample the hydraulic oil and submit for particle count analysis to ISO 4406 standards. Target cleanliness level is ISO 4406 Class 18/15 (maximum 2,500 particles per ml larger than 4um and maximum 640 particles per ml larger than 6um). If oil exceeds this cleanliness level, the hydraulic system should be opened and filtered or the oil replaced
• Quarterly visual inspection: Inspect wire/rope condition, drum wear, brake pad thickness, and hydraulic fitting integrity. Document findings and schedule any corrective maintenance identified
• Annual hydraulic system overhaul: Replace all hydraulic seals, inspect and repack drum bearings, inspect brake system components (pads, springs, actuators), and verify hydraulic system pressure and flow settings against original specifications
• 5-year major inspection: Full winch disassembly inspection including gear wear assessment, structural integrity verification, and hydraulic cylinder inspection. This is the level of inspection required to support continued safe operation beyond the typical 15-20 year equipment design life

The 500-hour oil analysis protocol is particularly important because hydraulic oil contamination is the primary mechanism through which system efficiency degrades over time. Particles in hydraulic oil cause wear in pump components, which creates more particles, which causes more wear—a positive feedback loop that can reduce system efficiency by 12-18% per year in inadequately maintained systems. Regular oil analysis catches this process early, when maintenance intervention is still low-cost and the system efficiency can be restored.

SOLAS Chapter V-2006 and Mooring Winch Procurement Requirements

For winches that will serve vessels operating in Southeast Asian waters—including the South China Sea shipping lanes, the Straits of Malacca and Singapore, and the regional container and bulk shipping routes that connect these ports to global trade networks—SOLAS Chapter V Regulation 19 provides the foundational safety standard that shapes procurement specifications.

SOLAS V/19.2.3 requires that mooring winches be capable of holding vessels against maximum environmental loads as determined by the vessel's mooring analysis. For Southeast Asian vessel operations, this means the winch must be capable of withstanding the loads generated by typhoon-generated wind and wave action that can occur during the typhoon season (June-November in the South China Sea, with peak activity in August-October).

What this means for procurement: if you're specifying mooring winches for a terminal that will serve vessels engaged in regional trade routes that transit the typhoon-prone areas of the South China Sea and Philippine Sea, your specification line pull values should be based on the design environmental conditions for the transit area, not just the sheltered harbor conditions at the berth. This typically means adding an additional 15-25% margin above the harbor mooring calculation to account for the vessel's need to maintain position at anchor or mooring buoys during typhoon conditions while awaiting berth availability.

Because SOLAS compliance is a vessel-level obligation, not a port-level obligation, port operators don't directly bear SOLAS compliance responsibility—but terminals that cannot accommodate the mooring configurations vessels need to maintain SOLAS-compliant mooring arrangements will find those vessels diverting to competitor ports that can.

Common Questions About Mooring Winch Procurement for Southeast Asian Port Expansions
