Planetary gearboxes are among the most mechanically efficient and space-optimized power transmission devices in engineering. Their unique architecture — a central sun gear, multiple planet gears, and an outer ring gear — enables high torque density, coaxial alignment, and exceptional load distribution. This makes them indispensable across the heaviest and most demanding industrial applications on earth.
This guide explores where planetary gearboxes are used, why they outperform alternative gear types in these environments, and what engineers and procurement teams need to know when specifying one.
How a Planetary Gearbox Works
Before examining applications, it is worth understanding what makes planetary gearboxes structurally superior for heavy-duty use.
In a planetary gear system, the input shaft drives the sun gear at the center. The sun gear meshes with multiple planet gears (typically 3–5), which rotate around it while also revolving around the central axis. These planet gears are held by a planet carrier, which serves as the output shaft. The entire assembly is enclosed within a ring gear (annulus gear) fixed to the housing.

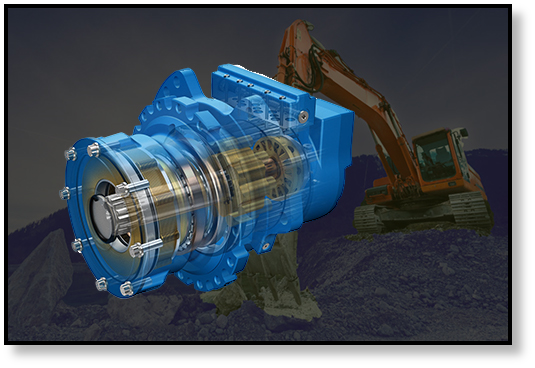

Planetary gearbox integrated into a travel motor final drive — the standard configuration for excavators and crawler cranes.
This arrangement distributes the load across multiple gear contacts simultaneously, which is why planetary gearboxes achieve torque densities 3–5 times higher than equivalent parallel-shaft gearboxes of the same size. The coaxial input-output design also simplifies integration into rotating machinery.
Core Advantages Over Other Gearbox Types
| Property | Planetary Gearbox | Parallel Shaft Gearbox | Worm Gearbox |
| Torque Density | Very High | Medium | Low–Medium |
| Efficiency | 97–99% per stage | 95–98% per stage | 50–90% |
| Compactness | Excellent (coaxial) | Moderate | Compact but inefficient |
| Load Distribution | Multiple contact points | Single mesh | Single mesh |
| Backlash | Low (precision types) | Medium | Low |
| Gear Ratio Range | 3:1 to 10,000:1+ | 1.5:1 to 100:1 | 5:1 to 300:1 |
| Typical Application | Heavy industry, robotics | General machinery | Conveyors, light lifting |
Major Industrial Applications
1. Excavator Travel Motors and Swing Drives
The most widespread application of planetary gearboxes in construction is the final drive of excavators. Every crawler excavator uses a planetary gearbox integrated into its travel motor to reduce the high-speed, low-torque output of the hydraulic motor to the low-speed, high-torque needed to drive the tracks.
[Image failed to load: Excavator Gearbox Application] Planetary gearbox integrated into excavator travel drive — enabling high-torque track propulsion from a compact hydraulic motor.
A typical 20-ton excavator travel motor operates at 2,000–3,000 RPM at the hydraulic motor output. After passing through a two-stage planetary gearbox with a combined ratio of approximately 50:1 to 80:1, the final drive sprocket turns at 25–60 RPM with torques exceeding 100,000 Nm.
INI Hydraulic manufactures travel motors with integrated planetary gearboxes compatible with major excavator brands including SANY, XCMG, Komatsu, and Hitachi, covering machine classes from 1.5 tons to 80 tons.
Key specifications for excavator travel motors:
| Machine Class | Rated Torque | Gear Ratio | Displacement |
| 1.5–3.5 ton | 3,000–6,000 Nm | 36–50:1 | 18–35 cc/rev |
| 6–13 ton | 10,000–25,000 Nm | 50–65:1 | 35–80 cc/rev |
| 20–35 ton | 40,000–80,000 Nm | 65–85:1 | 80–160 cc/rev |
| 50–80 ton | 100,000–200,000 Nm | 85–110:1 | 160–300 cc/rev |
2. Crane Hoisting and Slewing Mechanisms
Tower cranes, mobile cranes, and offshore cranes all rely on planetary gearboxes in two critical mechanisms:
Hoisting (Winch Drive): The hoist motor drives a planetary gearbox that turns the winch drum. The gearbox must provide smooth, controllable speed reduction while holding the load safely when power is removed — typically achieved through a spring-applied, hydraulically released brake integrated into the gearbox housing.
Slewing (Rotation Drive): The slewing ring that rotates the crane superstructure is driven by one or more planetary gearboxes mounted on the slewing ring gear. These gearboxes must provide precise, low-backlash rotation to position loads accurately, even under wind loading.
INI Hydraulic's slewing devices are used in rough-terrain cranes, truck cranes, and tower cranes, with output torques ranging from 5,000 Nm to over 500,000 Nm.
3. Winch Drive Gearboxes
Hydraulic winches for marine, offshore, and mining applications incorporate planetary gearboxes as the core speed-reduction element between the hydraulic motor and the wire rope drum. The planetary configuration is preferred over worm or helical gearboxes because:
• It achieves the required 50:1 to 200:1 reduction ratio in a compact, sealed housing
• It handles shock loads and dynamic loading better than worm gears
• Its high efficiency (97%+) minimizes heat generation during continuous operation
• The coaxial design allows the motor and drum to be aligned on the same axis, simplifying the overall winch assembly
For anchor winches and mooring winches on offshore vessels, the gearbox must also meet DNV, ABS, or Lloyd's classification society requirements, including certified load testing and material traceability.
4. Ferris Wheels and Amusement Ride Drives
One of the more unusual but technically demanding applications for planetary gearboxes is the drive system of large observation wheels and ferris wheels. INI Hydraulic has supplied planetary gearboxes for city ferris wheels in Shanghai, Tianjin, and Changzhou, where the requirements include:
• Ultra-smooth, low-vibration rotation for passenger comfort
• Extremely low operating speed (typically 0.5–2 RPM at the wheel rim)
• High gear ratios (often 1,000:1 or greater in multi-stage configurations)
• Continuous 24/7 operation with minimal maintenance intervals
• Redundant braking systems for passenger safety
The planetary gearbox's ability to achieve very high ratios in a compact form, combined with its smooth load distribution and low noise characteristics, makes it the only practical choice for this application.
5. Mining and Drilling Equipment
In underground mining and surface drilling operations, planetary gearboxes appear in:
• Drill head drives — converting high-speed motor output to the low-speed, high-torque rotation needed for rock drilling
• Conveyor drives — powering long belt conveyors that transport ore from the face to the surface
• Hoist drives — raising and lowering personnel and materials in mine shafts
• Continuous miner cutting heads — driving the rotating cutting drums that break coal or ore
The sealed, self-contained nature of planetary gearboxes makes them particularly well-suited to the dusty, wet, and corrosive conditions of underground mining.
How to Select the Right Planetary Gearbox
When specifying a planetary gearbox for a heavy industrial application, engineers should define the following parameters:
| Parameter | Description | Guidance |
| Output Torque | Peak and continuous torque at output shaft | Apply service factor of 1.25–2.0× calculated torque |
| Gear Ratio | Required speed reduction (input RPM / output RPM) | Confirm with motor speed and required output speed |
| Input Speed | Motor or engine output speed (RPM) | Match to hydraulic motor or electric motor rating |
| Mounting Configuration | Flange, foot, shaft, or integrated | Determine from machine interface drawing |
| Output Interface | Shaft, spline, or flange | Match to drum, sprocket, or pinion |
| Brake Requirement | Integrated spring-applied brake? | Required for hoisting and winch applications |
| Sealing Standard | IP rating, marine, ATEX | Define operating environment |
| Certification | DNV, ABS, CE, ISO | Required for marine and lifting applications |
Engineering Note: The service factor (SF) is critical. For applications with shock loading (e.g., crane hoisting, excavator travel), the calculated torque should be multiplied by a service factor of 1.5 to 2.5 before selecting the gearbox rated torque. Undersizing a gearbox in a heavy-duty application is a common and costly mistake.
INI Hydraulic Planetary Gearbox Product Lines
INI Hydraulic designs and manufactures planetary gearboxes for the full spectrum of heavy industrial applications:
Travel Motor Gearboxes (IGY Series)
• Compatible with major excavator, crawler crane, and piling rig brands
• Torque range: 3,000 Nm to 200,000 Nm
• Integrated hydraulic motor mounting
• Available in 2-stage and 3-stage configurations
Slewing Devices (IGT Series)
• For crane rotation, turntable drives, and rotating platforms
• Output torque: 5,000 Nm to 500,000 Nm
• Integrated slewing ring or pinion output options
• Low-backlash precision versions available
Winch Drive Gearboxes
• Integrated into hydraulic winch assemblies
• Gear ratios from 50:1 to 500:1
• Spring-applied brake as standard
• Marine-grade sealing available
Maintenance Best Practices
Planetary gearboxes are robust, but they require systematic maintenance to achieve their rated service life:
1 Oil Level and Quality Checks — Inspect gear oil level every 500 operating hours. Replace oil at intervals specified in the product manual (typically 2,000–4,000 hours).
2 Seal Inspection — Check input and output shaft seals for leakage every 1,000 hours. Replace seals at the first sign of weeping.
3 Torque Check on Fasteners — Re-torque mounting bolts and flange connections after the first 100 hours of operation and annually thereafter.
4 Brake Function Test — For gearboxes with integrated spring-applied brakes, test brake holding torque annually or after any significant shock load event.
5 Vibration Monitoring — Unusual vibration or noise is an early indicator of bearing wear or gear damage. Address immediately to prevent catastrophic failure.
Conclusion
Planetary gearboxes are not a commodity component — they are precision-engineered power transmission devices that determine the reliability and performance of the machines they drive. In heavy industry, where downtime costs tens of thousands of dollars per hour and safety is non-negotiable, selecting the right gearbox from a qualified manufacturer is a critical engineering decision.
INI Hydraulic brings over 20 years of design and manufacturing experience to planetary gearbox production, with products deployed in cranes, excavators, offshore vessels, ferris wheels, and drilling platforms across more than 50 countries.
