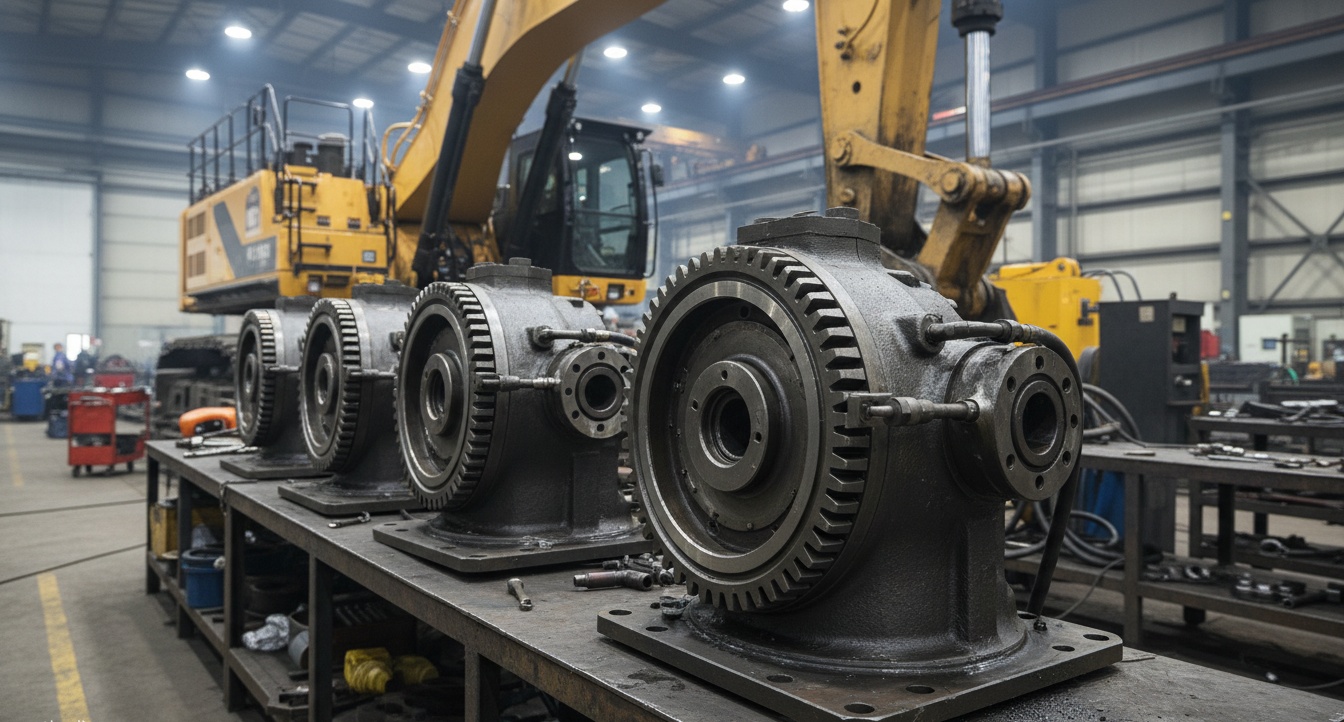

Mining Excavator Slewing Drive Replacement: Compatibility Mapping for 20-Ton to 100-Ton Machines

When a hydraulic slewing drive fails on a mining excavator in the field, the machine stops -- and in a quarry or open-pit operation, every hour of downtime carries a real production cost. Finding the right hydraulic slewing drive replacement quickly is not just a maintenance decision; it is a supply chain and procurement decision that affects your mine's output targets for days or weeks.

This article provides a practical compatibility mapping guide for mining excavators in the 20-ton to 100-ton operating weight range. It covers how to identify the correct replacement slewing drive, what technical parameters to match, and how the IYH series hydraulic slew drive from INI Hydraulic fits into the replacement decision framework for Komatsu, Caterpillar, Hitachi, and other major excavator OEMs.

What Is a Hydraulic Slewing Drive and Why Does It Matter?

The hydraulic slewing drive (also called a swing drive or slew drive in different markets) is the power train component mounted at the intersection of the excavator's lower frame and upperstructure. Its job is to convert hydraulic fluid flow from the main pump into rotational torque at the swing pinion, which drives the upperstructure's 360-degree rotation.

The slewing drive assembly typically contains:

• A hydraulic motor (typically an axial piston design) that receives pressurized hydraulic fluid and converts it to rotary mechanical output
• A planetary gearbox (usually 2-3 stages) that multiplies the motor torque to the level required to rotate the upperstructure against the slewing bearing and inertial loads
• A slew bearing (sometimes external to the gearbox, sometimes integrated) that supports the upperstructure on the lower frame and provides the bearing surface for the swing pinion gear
• A holding brake (usually a multi-disc SAHR -- spring-applied hydraulic-released -- brake) that locks the upperstructure in position when the excavator is stationary

In mining excavators, the slewing drive operates under some of the highest cyclic load conditions in the machine. The upperstructure is rotating, braking, and reversing hundreds of times per shift, with each swing cycle imposing shock loads as the boom and arm decelerate. The combination of high cyclical torque, vibration, and dust exposure in mining environments makes the slewing drive one of the most mechanically stressed components on the machine -- and one of the most common causes of unplanned excavator downtime.

Understanding Excavator Size Classes and Slewing Drive Requirements

The first step in compatibility mapping is to correctly identify the excavator's size class and the corresponding slewing drive specification. Excavator manufacturers classify their machines by operating weight, and each weight class maps to a roughly predictable swing torque requirement.

These are general reference ranges. Actual torque requirements are influenced by specific machine configuration (boom length, attachment weight), hydraulic system pressure (which varies between OEM hydraulic architectures), and operational cycle intensity. Always cross-reference the specific OEM parts catalog or contact the slewing drive manufacturer's technical team for a confirmed specification before ordering a replacement.

Key Compatibility Parameters

1. Mounting Interface and Bolt Pattern

The most fundamental compatibility check is the physical mounting interface. The slewing drive must bolt directly onto the excavator frame without modification. The two key dimensions are:

• Bolt circle diameter (BCD): The pitch circle diameter of the mounting bolts, measured between the centers of opposite bolts. This must match the excavator frame mounting bosses exactly.
• Number of bolts and thread size: The bolt count (typically 8, 10, 12, or 16) and the metric thread designation (M12, M14, M16, M20, etc.).

The IYH22/IYH33 series from INI Hydraulic is designed to match standard BCD and bolt specifications for machines in the 30-75 ton class, covering the majority of Komatsu, Caterpillar, and Hitachi excavators in that range. For the IYH2.52.5-NH, the design target is the compact 20-30 ton class with standard M12/M14 interface configurations.

2. Hydraulic Motor Displacement

The hydraulic motor displacement (cc/rev or in3/rev) determines the torque output at a given system pressure. A mismatch here -- whether the replacement motor is too small or too large -- will result in either insufficient swing performance or excessive load on the excavator's hydraulic system.

To determine the correct motor displacement:

1. Check the excavator's main hydraulic pump flow rate and system pressure (available in the OEM service manual)
2. Calculate the required motor displacement based on the swing torque requirement and available pressure differential
3. Verify that the replacement motor displacement is within 10% of the OEM specification to avoid overloading the pump circuit

3. Swing Pinion and Slew Bearing Dimensions

The swing pinion gear meshes with the slew bearing raceway to drive upperstructure rotation. The pinion tooth count, module (tooth size), and pressure angle must be compatible with the slew bearing -- and the slew bearing must mount to the excavator frame using the same interface as the original unit.

When specifying a replacement slewing drive, confirm:

• Pinion module and tooth count: Match the OEM specification to ensure proper gear mesh and noise levels
• Slew bearing pitch circle diameter (PCD): This must match the excavator frame mounting pattern
• Slew bearing axial and radial load ratings: The replacement bearing must have equal or greater load capacity than the original per DIN 3962 and ISO 6336 standards

4. Holding Brake Type and Capacity

Most mining excavators use a spring-applied hydraulic-released (SAHR) multi-disc holding brake in the swing drive. On very large machines (above 75 tons), some OEMs use wet-coded disc brakes with dedicated hydraulic release circuits.

When sourcing a replacement slewing drive, confirm:

• The brake release pressure (bar/psi) matches the excavator's auxiliary hydraulic circuit
• The static holding torque rating of the brake meets or exceeds the OEM specification (typically 1.5x the maximum swing torque per SAE J706)
• The brake friction material is appropriate for the operating environment -- in mining, dust and moisture are ever-present, and organic friction materials degrade faster than sintered metallic compounds

Standards Governing Excavator Slewing Drive Design and Replacement

The following standards are directly relevant to the specification, design, and acceptance testing of hydraulic slewing drives for mining excavators. Ensuring that a replacement unit is designed and tested to these standards is a key element of due diligence in procurement:

IYH Series Hydraulic Slewing Drive: Product Overview

The IYH series hydraulic slew drive from INI Hydraulic covers the full weight range from compact 20-ton excavators to the largest 100-ton mining machines, with a modular product architecture that simplifies the replacement process.

Design Architecture

Each IYH series unit shares a common design architecture adapted for the relevant size class:

• Axial piston hydraulic motor: Fixed or variable displacement depending on model, with high-pressure seals rated to 350 bar peak pressure. The motor is sealed from the environment, preventing dust ingress that causes premature wear in mining applications.
• Triple-stage planetary reduction: Three-stage planetary gearbox providing the high reduction ratios needed for swing torque multiplication. Planetary stages are preferred over worm gears for excavator swing drives because they offer higher efficiency (reducing heat generation) and compact radial packaging.
• Integrated SAHR holding brake: Spring-applied hydraulic-released multi-disc brake mounted on the high-speed input stage, providing positive holding torque that engages automatically on hydraulic pressure loss. The brake is externally adjustable for pad wear compensation -- a feature that extends service intervals between pad changes.
• Heavy-duty slew bearing: Crossed roller bearing design with induction-hardened raceways, designed for combined axial and radial loads from the upperstructure weight and swing inertia. The bearing is grease-lubricated and sealed with multi-lip radial seals to prevent contamination in dusty mining environments.

IYH22 and IYH33 Models (30-75 Ton Class)

The IYH22 and IYH33 models are the mid-range options in the IYH series, covering excavators from 30-75 tons operating weight. These models feature:

• Swing torque: 50-150 kNm (model dependent)
• Hydraulic motor displacement: 70-160 cc/rev (specify when ordering to match excavator hydraulic circuit)
• SAE J706 compliant design with a 1.5 service factor for mining cycle intensity
• Flange-mount interface compatible with standard Komatsu and Caterpillar mounting bolt patterns for this size class

IYH2.52.5-NH Model (20-30 Ton Class)

The compact IYH2.52.5-NH targets the 20-30 ton excavator class with a narrower, shorter-profile design suited to compact machine geometry. The IYH2.52.5-NH delivers:

• Swing torque: 25-50 kNm
• Optimized for machines with tighter upperstructure envelope (reduced swing drive housing diameter)
• Compatible with the mounting bolt patterns of popular 20-30 ton models including Komatsu PC200/PC210 and Caterpillar 320 series
• Standard SAE J706 service factor, making it suitable for standard digging and loading applications

Replacing OEM Swing Drives vs. Choosing Aftermarket: What to Consider

When an OEM swing drive fails, procurement teams face a familiar choice: order the genuine OEM replacement part at OEM prices, or source an aftermarket or cross-brand replacement unit at a lower unit cost. The decision is not simply about price -- it involves supply chain lead time, machine compatibility, warranty coverage, and long-term reliability.

Arguments for OEM Replacement

• Guaranteed compatibility with the machine's exact configuration
• Full OEM warranty coverage
• Simplified parts tracking and service history documentation

Arguments for Aftermarket / Cross-Brand Slewing Drive Replacement

• Typically 30-50% lower unit cost versus OEM genuine parts
• Stock availability from independent distributors often faster than OEM supply chains for older machine models out of current production
• Well-engineered aftermarket units from established manufacturers (such as INI Hydraulic IYH series) meet or exceed OEM specifications per SAE J706 and DIN 3962
• Technical support from engineering-focused manufacturers often exceeds OEM dealer support for field application questions

When to Choose Each Option

For machines still under OEM warranty, genuine OEM parts are typically required to maintain warranty coverage -- check the machine warranty terms before proceeding. For machines out of warranty, an engineered aftermarket replacement like the IYH series provides a cost-effective alternative without compromising on mechanical specification.

The operational environment also matters: for extreme mining conditions (high altitude, heavy vibration, abrasive dust), investing in the higher-specification variant of the replacement unit -- even if it costs marginally more -- will deliver lower total cost of ownership through longer mean time between failures.

Maintenance and Inspection Intervals for Excavator Slewing Drives

Proper maintenance of the excavator slewing drive extends machine uptime and reduces the risk of a secondary failure triggered by premature wear in the swing drive. The following intervals apply to the IYH series and comparable slewing drives from other manufacturers:

• Every 500 operating hours: Grease the slew bearing via the fitting points on the drive housing. Use EP (extreme pressure) lithium-complex grease NLGI Grade 2 or 3. Wipe the fitting point clean before injecting grease to avoid contaminating the bearing raceway.
• Every 2,000 operating hours (or annually): Hydraulic motor oil and seal replacement. The hydraulic motor within the slewing drive shares the machine's hydraulic oil circuit, but the motor's internal seals age independently of the main hydraulic system. Replacing motor seals and oil at this interval prevents internal leakage and pressure loss.
• Every 2,000 hours: Brake pad thickness check. SAHR brake pads wear with each engagement cycle. Measure pad thickness against the manufacturer's minimum safe thickness specification. Replace if below minimum.
• Every 5,000 hours: Gearbox oil change. Even if the planetary gearbox appears sealed, oil degrades over time due to thermal cycling and micro-contamination from seal wear. Drain and refill with the manufacturer-specified gear oil viscosity (typically ISO VG 220 or VG 320 for excavator swing drives).
• Every 10,000 hours: Full slewing drive overhaul. Replace all seals, brake pads, and bearings. Inspect the planetary gear stages for wear or chipping. Perform a load test to 1.0x rated torque to verify mechanical integrity before returning to service.

Conclusion: Making the Right Replacement Decision

Replacing a hydraulic slewing drive on a mining excavator is a technically involved decision that goes beyond simply matching a part number. The key to a successful replacement is matching the physical mounting interface, the hydraulic motor displacement and pressure rating, the swing pinion and slew bearing dimensions, and the holding brake specification -- all while ensuring the replacement unit is designed and tested to the relevant standards (SAE J706, DIN 3962, ISO 6336).

The IYH series from INI Hydraulic provides a standardized, spec-compliant replacement path across the full 20-100 ton excavator weight range, covering Komatsu, Caterpillar, Hitachi, Volvo, and other major OEM excavator models. By selecting from the IYH range and specifying the correct model variant for your machine's weight class and hydraulic configuration, you can achieve a direct fit replacement that restores full swing performance without modifying the machine structure.
