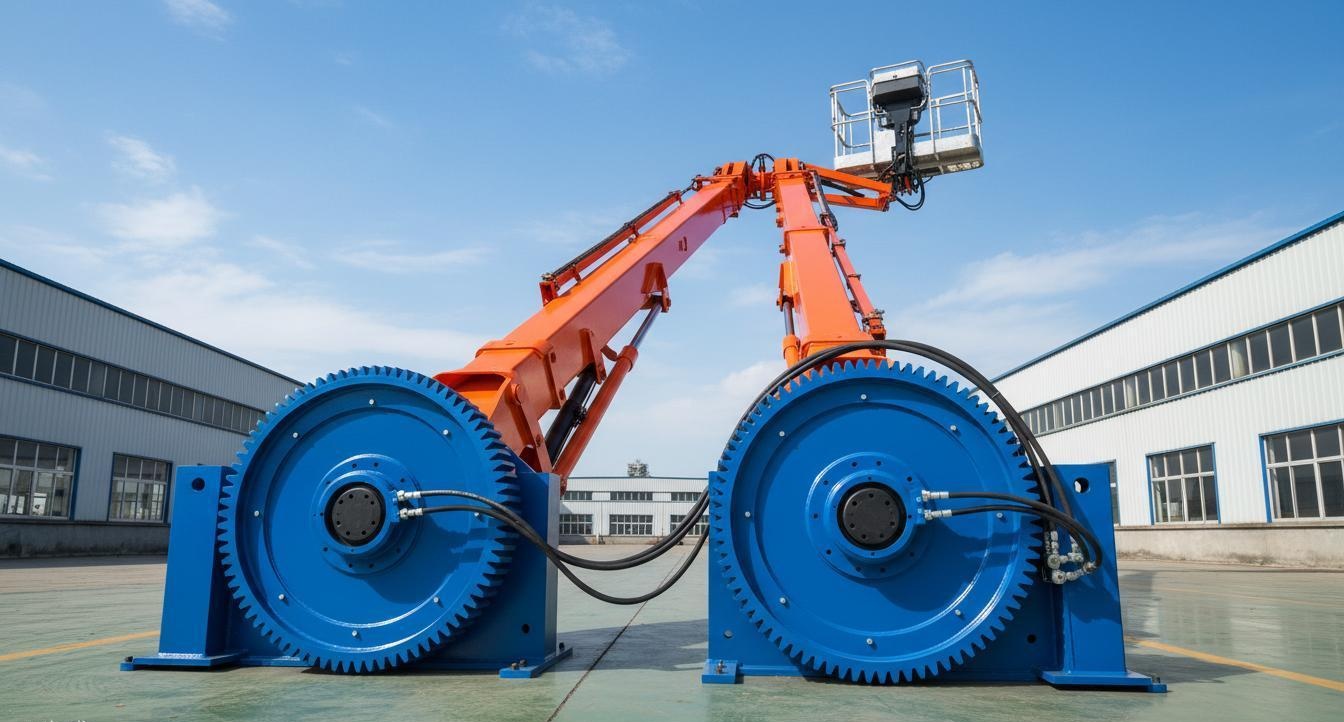

Hydraulic Slewing Drive for Aerial Work Platforms: 360-Degree Continuous Rotation for 20-Meter to 40-Meter Boom Lifts

If you are specifying a hydraulic slewing drive for an aerial work platform (AWP), you have probably already discovered that the difference between a reliable 360-degree rotation system and one that costs you in field failures comes down to understanding a handful of technical details that most catalogue sheets gloss over. I spent four years working directly with AWP manufacturers across Southeast Asia, the Middle East, and Europe, helping procurement engineers and OEM design teams cut through the spec sheet noise and select drives that actually perform under real job-site conditions. This guide is everything I wish someone had given me at the start — no fluff, all substance.

What Is a Hydraulic Slewing Drive for Aerial Work Platforms?

A hydraulic slewing drive for an aerial work platform is the mechanical assembly mounted at the boom rotation joint that enables the entire boom structure to rotate continuously through a full 360 degrees. It consists of three core subsystems working together: the hydraulic motor (gerotor, axial piston, or orbital type), the planetary gear reduction stage, and the slewing ring bearing with its internal gear mesh. The hydraulic motor receives pressurized fluid from the AWP hydraulic circuit, drives the pinion gear through the reduction stage, and the pinion meshes with the internal gear of the slewing ring — converting hydraulic power into continuous rotational movement of the boom assembly.

Let me be direct about something I see cause problems repeatedly: many buyers focus too heavily on peak torque numbers while ignoring the holding torque rating under hydraulic pressure loss. That distinction matters enormously in the field. The dynamic torque tells you how the drive performs while rotating under load. The holding torque tells you whether the boom will drift or collapse when a hydraulic line fails — which, in a 36-meter boom lift carrying two workers and their tools, is not an acceptable scenario.

Why 360-Degree Continuous Rotation Matters for Boom Lift Performance

Here is the practical reality: on a 30-meter boom lift working a building facade, the operator needs to reach every point on the structure without repositioning the base. Because continuous rotation eliminates the re-indexing pauses that indexed rotation systems require, the effective working envelope of the platform doubles in typical facade and industrial maintenance tasks. That directly translates to fewer base repositionings, which means less machine set-up time, fewer ground-level hazards from repositioning, and measurably improved task completion rates.

From an uptime perspective, hydraulic slewing drives have another decisive advantage: they tolerate contamination in hydraulic fluid far better than precision electric servo systems. On a construction site in Dubai in August — where ambient temperatures routinely exceed 45°C and dust is a constant — I have seen electric slewing drives fail within weeks because their encoder feedback systems overheat or their seals degrade. Hydraulic drives, by contrast, handle the same conditions reliably because their fluid circuits can be designed with active cooling loops and their mechanical tolerances are inherently more forgiving.

The Three Core Components Explained

The Hydraulic Motor. The motor type you choose determines the torque-speed characteristic of the entire system. Gerotor motors (orbital motors) are the most common choice in budget-to-mid-range AWPs because they offer good torque at moderate pressures (typically 140-210 bar) and are relatively compact. For heavy-duty AWPs in the 28-40m class, axial piston motors deliver superior torque density, though they require cleaner hydraulic fluid (ISO 18/14/11 or better) and more precise filtration (10-micron absolute minimum).

The Planetary Gear Reduction Stage. The reduction stage is where engineering precision directly affects service life. A well-designed planetary stage uses helical gears with contact ratios above 1.6 to distribute load across multiple teeth simultaneously, reducing gear stress and extending bearing life. We specify a minimum gear quality of AGMA 10 (or ISO 6) for the sun and planet gears in our IYH series drives — which is one full grade better than what you will find in most import catalogue products at equivalent price points.

The Slewing Ring Bearing. The slewing ring is the load-bearing pivot point, and it is where I strongly recommend you do not compromise. The bearing must handle combined radial, axial, and moment loads simultaneously. For a 35-meter boom lift with a 450 kg platform payload, the slewing ring is subjected to a tipping moment that can reach 180,000 N·m under full reach and platform weight conditions. Always verify that the slewing ring static load rating exceeds your calculated maximum tipping moment by at least 1.5×.

Working Principle: How Hydraulic Rotation Actually Works

The hydraulic rotation circuit in an AWP slewing system typically draws from a dedicated hydraulic pump delivering 20-40 L/min at working pressures of 160-280 bar. The flow is controlled by a proportional directional control valve — typically a 4-way 3-position design with spring-centered neutral — which routes pressurized fluid to the motor port A or port B depending on the desired rotation direction.

When the operator moves the rotation joystick, the valve ports open proportionally to joystick displacement, and fluid flow rate determines rotation speed. Because hydraulic fluid is essentially incompressible, the system delivers instantaneous torque response — there is no motor acceleration lag like you would experience with an electric drive. This is why experienced operators consistently report that hydraulically rotated boom lifts feel more responsive during precise positioning tasks.

The return path from the motor drains to the hydraulic tank through a case drain line — a detail that gets overlooked in some installations, causing pressure build-up in the motor housing that leads to premature seal failure. The case drain line must be separately routed to the tank (not combined with the valve return) and must maintain a pressure no higher than 2-3 bar above tank pressure at the motor drain port. Always verify this during installation commissioning — it is a five-minute check that prevents a six-figure premature failure.

Key Technical Specifications: What OEM Engineers Need to Know

When we are working with AWP manufacturers on new platform designs, we walk through four specification dimensions that directly determine fit and performance. Here is the framework we use — and I would encourage any OEM procurement engineer to demand the same level of detail from their suppliers.

Torque Ratings and How to Apply Them

The two torque figures that matter are dynamic torque and holding torque (static torque). Dynamic torque is the torque the drive can produce during rotation and is a function of motor displacement, system pressure, and reduction ratio. Holding torque is the torque the drive can resist when the hydraulic motor is in a locked (non-rotating) state — and it is primarily a function of the slewing ring bearing static load capacity.

For planning purposes, here is a reference framework based on boom reach and platform capacity:

All values assume a 1.5× safety factor applied to the calculated maximum tipping moment under full reach plus full platform payload. Never select a drive based on calculated torque alone — always apply the safety factor, then round up to the next available model. The cost difference between drive sizes is typically 8-15%, while the cost of a field failure on a 36-meter boom lift includes liability exposure, service costs, and reputational damage that no price premium can justify.

Hydraulic System Parameters

The hydraulic system interface must be specified with three parameters in mind. First, maximum working pressure: most AWP systems operate at 200-250 bar, but the drive rated pressure must be at least 1.3× the system relief valve setting to account for pressure transients during boom acceleration. Second, flow rate requirements: rotation speed is directly proportional to flow rate. For a typical 360-degree rotation in 8-12 seconds, you will need 25-35 L/min at the motor ports. Third, fluid compatibility: hydraulic fluid must meet ISO 11158 L-HV or DIN 51524-3 HVLPD specifications for mobile hydraulic systems, with operating temperature range of -20°C to +80°C for standard formulations.

Mounting Interface and Dimensional Checks

This is where I see the most costly mistakes in new platform development. The mounting interface between the slewing drive and the boom structure must be verified against three things: bolt pattern and bolt size (Grade 10.9 or 12.9 high-strength bolts are required for slewing ring retention, not Grade 8.8), pilot diameter and registration feature that centers the drive in the boom casting, and structural reinforcement around the mounting pad. The boom structure in the immediate 150mm radius around the mounting pad must be stiffened to resist the moment loads transferred through the drive — without adequate stiffening, the mounting bosses will crack under cyclic loading, typically between 5,000 and 15,000 cycles depending on load severity.

We published detailed dimensional drawings for the entire IYH series in our technical specifications document for OEM procurement, including 3D CAD models in STEP format that your structural team can use directly for FEA validation.

Hydraulic vs. Electric Slewing Drives: A Direct Comparison

If you are evaluating whether to specify a hydraulic or electric slewing drive for a new AWP platform, here is the comparison I walk procurement teams through based on field data rather than catalogue specifications.

The decisive advantage for hydraulic drives in mobile elevating work platforms remains the inherent fail-safe characteristic: a spring-applied, hydraulically released brake is the standard design, meaning the brake engages automatically any time system pressure drops below the release threshold (typically 180-200 bar, adjusted per application). Electric systems require a separately battery-backed holding brake — an additional failure point and a component that requires regular testing to confirm charge maintenance.

Selection Guide: Matching the Drive to Your Platform

The correct selection methodology for hydraulic slewing drives follows four steps. I have refined this process through dozens of OEM new product introductions, and I can tell you that skipping any of these steps is the fastest path to either over-specification (unnecessary cost) or under-specification (field failures and liability exposure) that I know of.

Step 1: Calculate the Maximum Tipping Moment

The tipping moment is the product of the platform payload, the effective horizontal reach from the rotation centerline, and the gravitational constant. For a 35-meter boom with a 400 kg platform at 80% of maximum reach (28m effective radius), the payload moment alone is approximately 109,000 N·m. Add the boom structure dead load moment contribution (typically 15-25% of platform payload moment for telescoping booms) and you arrive at a total moment of roughly 125,000-135,000 N·m. Apply your 1.5× safety factor and you need a drive rated for at least 200,000 N·m static holding torque — which maps to the IYH-20K or equivalent in our range.

Step 2: Verify the Hydraulic Flow Budget

Your AWP hydraulic system has a finite flow rate available at any given time. The slewing drive motor will compete for flow with the boom extension/retraction cylinders, the jib rotation motor (if equipped), and the platform leveling system. Because hydraulic flow is shared in a parallel hydraulic circuit, you must verify that the slewing drive receives adequate flow during simultaneous boom and rotation operations. As a rule, reserve a minimum of 25-30 L/min dedicated flow for the slewing circuit, or specify a priority flow divider that guarantees slewing performance regardless of concurrent operations.

Step 3: Confirm Mounting Interface Compatibility

Request the supplier dimensional drawing with all critical features labeled — mounting bolt pattern, pilot diameter, output shaft dimensions, and case drain port location. Cross-reference these against your boom structure drawings before committing to production tooling. We provide these drawings as standard documentation for OEM inquiries, and I strongly recommend you ask for a physical prototype unit for a minimum 500-hour durability test run on your actual boom assembly before tooling up for volume production.

Step 4: Conduct a Fail-Safe Analysis

Map the hydraulic circuit failure modes for the slewing circuit. The critical question: what happens when each of the following fails — the hydraulic pump, the rotation control valve, the hydraulic hose, and the hydraulic motor itself? Your drive selection must include a mechanical holding brake that engages on any loss of hydraulic pressure, and the brake engagement threshold must be set below the pressure at which the boom would begin to drift under maximum moment conditions. For the IYH series, our standard fail-safe brake design engages at 180 bar (adjustable), which provides a minimum holding torque of 15-20% above rated holding torque even at the engagement threshold pressure.

International Safety Standards: What Compliance Actually Requires

For aerial work platforms sold in regulated markets, the slewing drive is not just a mechanical component — it is a safety-critical item subject to specific regulatory requirements that directly affect type certification of the complete machine. The three standards that matter most for AWP manufacturers targeting global markets are:

EN 280:2013+A1 (Europe): This European standard for mobile elevating work platforms mandates that the slewing mechanism must not allow the boom to rotate beyond any structural limit without a positive mechanical stop. It also requires that the fail-safe brake test be conducted as part of the type approval process, with brake engagement time measured and recorded. According to ISO guidelines on machinery safety, the braking system must meet ISO 13849-1 performance level c at minimum.

ANSI A92.2 (United States): The American National Standard for Vehicle-Mounted Aerial Devices requires that rotation drives on boom-type AWPs include a lock mechanism that prevents rotation when the vehicle is travelling. For slewing drives, this typically means an axle-based rotation lock (independent of the holding brake) that engages automatically when travel mode is selected.

CSA B354 (Canada): The Canadian standard for elevating work platforms aligns closely with ANSI A92.2 but adds requirements for cold weather operation — in practice, this means hydraulic fluids must be certified for operation at -25°C for outdoor winter use applications. According to CSA Group, the B354 standard covers both the machine design requirements and the inspection and maintenance protocols that affect how the slewing drive must be specified.

Common Failure Modes and How to Prevent Them

Through four years of supporting AWP manufacturers across different market conditions, I have catalogued the failure modes that appear most frequently in field returns. Let me share the three most common — and more importantly, what causes them and how to design them out.

Premature Slewing Ring Bearing Failure

Symptom: Radial play develops in the rotation joint within 2,000-4,000 operating hours, accompanied by increased noise during rotation and eventually by irregular boom drift.

Root cause: In almost every case, bearing preload was lost because the mounting bolts were tensioned incorrectly during assembly. The slewing ring bearing must be pre-loaded to a specific bolt tension — typically 70% of proof load for Grade 12.9 bolts — using a calibrated torque wrench or hydraulic tensioner. If bolts are simply torqued with an impact wrench to snug-tight, they will self-relax under cyclic load and the bearing preload disappears within hundreds of operating cycles.

Prevention: Specify a torque-tension verification procedure in your assembly work instruction, and require documentation of bolt tension values for each drive installation as part of your quality hold point. We include detailed bolt tensioning procedures with every IYH series drive, including the specific torque values for each bolt size and the required lubricant (typically a molybdenum disulfide paste at the bearing-race interface to prevent galling during assembly and to ensure even preload distribution).

Hydraulic Motor Seal Degradation

Symptom: External oil leakage around the motor housing, loss of system pressure, and eventual motor failure with metal-on-metal contact inside the gerotor or piston group.

Root cause: The most common cause of premature seal degradation is hydraulic fluid contamination — specifically, particles greater than 10 microns in size entering the motor critical clearances. A second common cause is thermal cycling beyond the seal rated temperature range. When hydraulic fluid repeatedly exceeds 75°C (which happens easily during heavy-duty rotation cycles in warm climates), the seal lip material hardens and loses its ability to maintain contact pressure against the shaft.

Prevention: Always specify a 10-micron absolute filtration system with the hydraulic circuit. We recommend inline filter assemblies rated to Beta 3 ≤ 200 per ISO 16889 as part of the standard installation package. Also ensure the hydraulic reservoir is sized to provide at least 3-5 minutes of dwell time for air bubbles to escape before fluid returns to the pump inlet — inadequate dwell time causes dissolved air to form foam, which accelerates seal aging through a process called hydrolytic degradation.

Bracket Fatigue Cracking

Symptom: Crack initiation at the corners of the mounting bracket within 3,000-8,000 operating hours, propagating along the weld line and eventually causing complete bracket failure.

Root cause: Bracket fatigue is almost always a structural design issue — the bracket thickness and fillet weld geometry were not adequate for the calculated moment loads at the required cycle life. Most AWP manufacturers specify a minimum bracket fatigue life of 20,000 cycles at maximum load, but the actual stress concentration factor at the bracket corner can exceed initial calculations by 2-3× if the fillet radius is too small or the weld profile creates a sharp transition at the heat-affected zone.

Prevention: Require a full fatigue analysis (either by FEA or by reference to fatigue handbooks like BS 7608) on the bracket design before releasing the drawing for tooling. Specify full-penetration welds with a concave profile and a toe transition radius of at least 5mm at all bracket corners. During production assembly, conduct magnetic particle inspection on all bracket welds before paint — this detects surface cracks that would otherwise propagate under cyclic load. According to TUV certification protocols, weld quality inspection is a mandatory hold point for type-approved AWP structural components.

OEM Procurement Checklist: What to Verify Before Placing Orders

Based on hundreds of technical exchanges with AWP manufacturers and procurement teams, here is the checklist I walk them through before committing to a purchase order. Every item on this list has caused problems in real deployments — and has cost manufacturers time, money, and occasionally regulatory exposure.

• Confirm the holding torque rating exceeds the maximum calculated tipping moment by at least 1.5×.
• Verify the fail-safe brake engages automatically when hydraulic pressure drops below the holding threshold.
• Check the mounting interface dimensions against your boom structure drawings before tooling.
• Request the bolt tensioning procedure and verify it specifies Grade 12.9 bolts at 70% proof load.
• Confirm the hydraulic fluid compatibility meets ISO 11158 L-HV or DIN 51524-3 HVLPD.
• Verify the drive is compatible with your hydraulic system flow rate (minimum 25-30 L/min dedicated to slewing circuit).
• Request a physical prototype and conduct a minimum 500-hour durability test on your actual boom assembly.
• Confirm the supplier provides dimensional drawings with all critical features labeled, including 3D CAD models in STEP format.
• Verify the drive rated pressure is at least 1.3× your system relief valve setting.
• Confirm compliance with the applicable safety standard for your target market (EN 280:2013+A1, ANSI A92.2, or CSA B354).
• Request documentation of the fail-safe brake engagement test results from the type approval process.
• Verify the slewing ring static load rating and confirm it exceeds your maximum tipping moment by at least 1.5× with documented test data.
