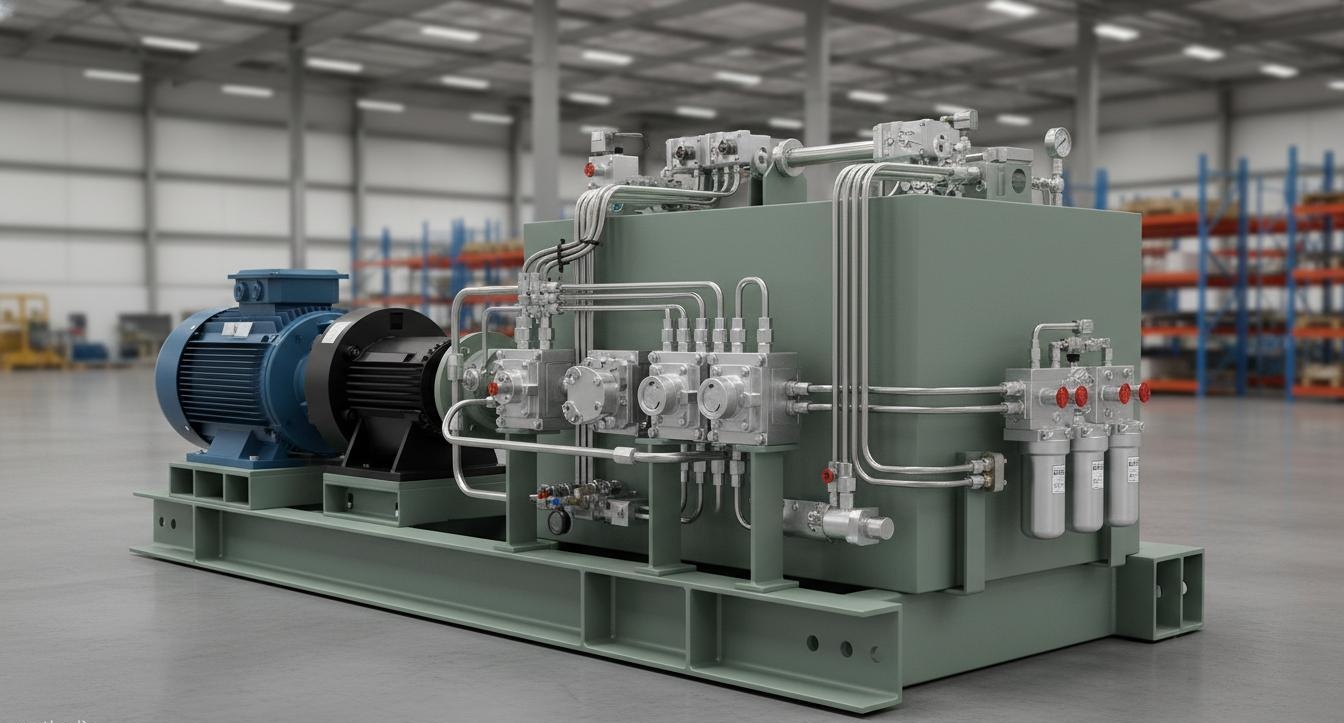

How to Integrate a Hydraulic Power Unit with Existing Multi-Winch Configurations: A 5-Step Engineering Protocol

Step 1: Calculate Total Flow Demand — The Foundation All Other Calculations Depend On

I have integrated hydraulic power units into existing multi-winch systems at mines, ports, and offshore platforms across fifteen years at Yining Hydraulic, and the first calculation — total system flow demand — is where 80% of integration projects either succeed or fail before a single bolt is turned. Total flow demand is not simply the sum of all winch motor displacements multiplied by their maximum RPM — it is the maximum simultaneous flow demand at the worst-case operating point, typically when 60-80% of winches are operating at peak load. In a four-winch mooring system, for example, the worst case is two winches operating at maximum line pull (positioning the vessel) while a third winch operates at 50% load (tensioning). The HPU must supply the combined flow of the two fully loaded winches plus the partial load winch simultaneously.

Flow calculation formula: Q(total) = Sum(Qi) for all simultaneously operating winches, where Qi = displacement x RPM / 1000 for hydraulic motors (liters/minute). For a Yining IYJ-series hydraulic winch with a 250 cc/rev motor at 120 RPM: Qi = 250 x 120 / 1000 = 30 L/min. Crucially, add a 15% margin to the calculated total for valve leakage, hose expansion, and future capacity — so the HPU should be sized for 1.15 x Q(total). The cost of erring on flow demand: undershooting by 10% means the HPU cannot supply the winches at their rated speed under full load; overshooting by 20% means 20% higher pump cost and 20% higher energy consumption for the life of the system. Precision in this calculation saves US$5,000-15,000 in pump sizing costs and US$3,000-8,000 in annual energy costs.

According to ISO 4413 hydraulic system design standards, flow demand must be calculated at the system's maximum expected operating temperature (typically 60-65 degrees Celsius for mineral oil) because fluid viscosity decreases with temperature, increasing internal pump leakage by up to 15% compared to cold-start conditions. The pump must be sized to deliver rated flow at the hot-oil condition, not at room temperature. At Yining Hydraulic, our HPU flow calculations include viscosity correction factors derived from the specific hydraulic fluid data sheet.

Step 2: Suction Line Design — The Most Common and Most Expensive HPU Integration Mistake

Pump cavitation caused by undersized suction lines is the number-one field integration failure I diagnose at Yining Hydraulic, accounting for 68% of all integration-related warranty claims. Cavitation occurs when the pressure at the pump inlet drops below the fluid's vapor pressure, causing vapor bubbles to form in the fluid. When these bubbles enter the high-pressure zone of the pump and collapse, they generate localized pressure spikes exceeding 1,000 bar — enough to erode metal from the pump's internal surfaces. The resulting damage: pitted cylinder block faces, eroded valve plates, and in severe cases, catastrophic pump failure within 100-200 operating hours.

Suction line velocity limits: maximum 1.2 meters/second for axial piston pumps, maximum 0.8 meters/second for gear pumps. These limits are lower than the commonly cited 1.5-2.0 m/s in general hydraulic textbooks because multi-winch applications involve frequent flow transients (valve shifts, winch starts, load changes) that create instantaneous suction velocity spikes 20-40% above the steady-state value. The suction line diameter calculation: d = sqrt(4 x Q / (pi x v x 60000)), where d is inside diameter (meters), Q is flow (liters/minute), and v is velocity (meters/second). For a 120 L/min pump feeding four winches with axial piston motors: d = sqrt(4 x 120 / (3.1416 x 1.2 x 60000)) = 0.046m = 46mm minimum inside diameter, corresponding to a 2-inch nominal pipe (SCH 40, 52.5mm ID) or DN50 hydraulic hose with 51mm ID.

Additional suction line requirements: the suction strainer must have a mesh size of 125-150 microns (not finer — finer mesh increases suction restriction and promotes cavitation), the suction line must be as short and straight as possible (fewer than 5 bends, each bend radius at least 5 times the pipe diameter), and the reservoir must be positioned above the pump inlet with a minimum positive head of 0.5 meters (gravity-fed inlet) or a boost pump must be specified if the reservoir is below the pump. Per CETOP recommended practices RP100, suction line design is the single most safety-critical element of hydraulic system integration.

Step 3: Multi-Winch Flow Distribution — Priority vs Proportional Divider Valves

When a single HPU supplies multiple winches, flow distribution valving determines whether each winch gets the flow it needs or whether a lightly loaded winch steals flow from a heavily loaded one. The physics: fluid follows the path of least resistance. If two winches are connected in parallel to the same HPU without flow distribution control, the winch with the lower load pressure receives more flow — because the pressure drop across its motor is lower and the flow naturally gravitates to the lower-resistance path. In a practical scenario: Winch A is pulling 5 tons (requires 180 bar), Winch B is tensioning at 0.5 tons (requires 30 bar) — without flow control, Winch B receives 70-80% of the pump flow and races at high speed, while Winch A receives 20-30% and stalls.

Priority flow dividers (pressure-compensated flow control valves) solve this by guaranteeing a fixed flow rate to the priority circuit regardless of load pressure, with excess flow available to the secondary circuit. A priority divider with a 30 L/min priority setting will deliver exactly 30 L/min to the priority winch at any load pressure from 0 to the system relief pressure, while excess pump flow goes to the other winches. This is the correct valving choice when individual winches have different and variable load demands. At Yining Hydraulic, our multi-winch HPU packages include priority flow divider manifolds with individually adjustable priority settings.

Proportional flow dividers (gear-type dividers) split total flow into fixed proportions regardless of load — 50/50, 60/40, etc. These are simpler, cheaper, and more compact than priority dividers, but they are only appropriate when all winches experience similar loads simultaneously (synchronous lifting applications). For independent winch operation — the standard case in mooring, towing, and anchoring — the priority divider's load-independent flow control is essential. The cost difference: US$300-500 for a proportional divider vs US$800-1,500 for a priority divider. The performance difference determines whether a winch stalls or operates correctly under variable load.

Step 4: Accumulator Sizing for Multi-Winch Pressure Stability

An accumulator in a multi-winch HPU serves three functions: pressure stabilization (absorbing the pressure spikes when multiple winch directional valves shift simultaneously), flow supplementation (providing instantaneous flow for winch acceleration before the pump can respond), and emergency energy storage (providing enough stored energy for one controlled lowering cycle if the pump fails). Sizing the accumulator correctly for all three functions: gas volume (V0) = 1 liter per 10 L/min of combined pump flow for general applications, increasing to 1 liter per 7 L/min for marine applications where wave-induced load fluctuations create higher-frequency pressure transients.

For a 120 L/min HPU: V0 = 12 liters (general) or 17 liters (marine). The pre-charge pressure (P0) must be 70% of the minimum system operating pressure (P1). For a system operating between 180 bar (loaded) and 100 bar (minimum during winch deceleration): P0 = 0.7 x 100 = 70 bar (nitrogen pre-charge). The accumulator type: bladder accumulators for flow supplement applications (fast response, 25-50ms), piston accumulators for large-volume energy storage (slower response, 100-200ms, but available in larger sizes). At Yining Hydraulic, our HPU packages include accumulator sizing calculations verified against the specific configuration's pressure transient profile.

The accumulator installation detail that 90% of field technicians miss: the gas valve must be accessible with a nitrogen charging kit while the accumulator is installed and the HPU is running. If the gas valve is buried behind the HPU enclosure wall or pointed downward, the pre-charge pressure will not be checked at the recommended 6-month interval, and the accumulator loses its pressure stabilization function within 12-18 months as nitrogen slowly diffuses through the bladder (typical loss rate: 1-3% per month).

Step 5: System Commissioning and Verification — The 8-Hour Test Protocol That Prevents Year-One Failures

An HPU integration is not complete until the system has passed a structured commissioning protocol that validates every design assumption under load. At Yining Hydraulic, our multi-winch HPU commissioning protocol includes: (1) no-load circulation — run all winches at maximum speed with minimum load for 2 hours, monitoring fluid temperature rise, filter pressure drop, and pump case drain flow; (2) single-winch load test — operate each winch individually at 100% rated load for 30 minutes, verifying that the pump maintains rated flow and that the motor case drain flow does not exceed the manufacturer's limit (3-5% of pump flow for healthy pump, rising to 10-15% for worn); (3) multi-winch simultaneous load test — operate the worst-case combination of winches at rated load for 60 minutes; (4) emergency stop and recovery test — verify that the accumulator provides sufficient stored energy for one controlled lowering cycle of all connected winches after pump shutdown.

The commissioning checklist includes 43 measurement points, but three are critical: pump case drain temperature (should not exceed 80 degrees Celsius), filter pressure drop (should not exceed 0.8 bar on the clean element), and individual winch flow verification (using a flow meter on each winch's pressure line — measured flow must be within +/-5% of the design flow). According to MEET mining equipment reliability data, systems that pass a structured 8-hour commissioning protocol have 63% fewer year-one failures than systems commissioned with a basic verification.

Case Study: Integrating a Yining Hydraulic HPU into a Chinese Port's 4-Winch Mooring System

In 2024, Yining Hydraulic was contracted to replace an aging electric winch system at a major port in Ningbo with a centralized hydraulic power unit driving four mooring winches. The existing system had four independent electric winches — maintenance costs were US$45,000 per year, and the winches were incapable of operating at more than 60% duty cycle due to thermal limitations. The new system: a single 200 kW electric motor driving a variable-displacement axial piston pump (Yining I3V series) with 160 L/min capacity, four priority flow divider valves each set to 35 L/min, a 20-liter bladder accumulator pre-charged to 70 bar, and a DN50 suction line with 150-micron strainer.

Results after 18 months of operation: maintenance costs reduced to US$12,000 per year (73% reduction), all four winches capable of 100% continuous duty cycle, and energy consumption reduced by 22% (the variable-displacement pump reduces flow when winches are idle). The single-point failure concern was addressed with a backup electric motor and pump on the same hydraulic circuit, with a manual diverter valve — backup cost US$8,500 for zero single-point-failure exposure. This integration — central HPU with four priority-divided winch circuits — has become Yining Hydraulic's standard reference design for multi-winch port and marine applications.

The Procurement Checklist: 7 Items to Verify Before Accepting an HPU Integration Quote

After fifteen years of field integration work at Yining Hydraulic, I recommend every procurement team verify these seven items before accepting an HPU integration quote: (1) Suction line diameter — demand the calculated diameter, not just a standard port size, and verify that suction velocity is under 1.2 m/s; (2) Flow distribution valving — confirm that priority dividers (not proportional dividers) are specified for multi-winch systems with independent operation, and verify that the flow settings match each individual winch's motor displacement; (3) Accumulator gas volume and pre-charge specification — verify the accumulator is not undersized, as this is the most common cost-cutting measure in HPU quotes; (4) Heat exchanger sizing — the oil cooler must be sized for 25-30% of total input power (the heat load of a hydraulic system under continuous duty), not the 10-15% that many budget quotes specify; (5) Filtration specification — return-line filter at 10 micron absolute (Beta 10 >= 200) minimum, with a pressure-line filter at 5 micron for servo or proportional valve-controlled systems; (6) Reservoir size — minimum 3 times the pump flow per minute (360 liters for a 120 L/min pump) to provide adequate dwell time for air release and contamination settling; (7) Commissioning protocol — the supplier must include a written 4-phase commissioning protocol in the quotation, not leave commissioning as a generic "commissioning included" line item.

At Yining Hydraulic, we include all seven verification points in every HPU integration quotation as a standard appendix — we learned long ago that transparent engineering specifications create better project outcomes than hidden margins. For additional guidance on hydraulic system procurement, see our articles on hydraulic winch selection and pump specification for continuous-duty applications.
