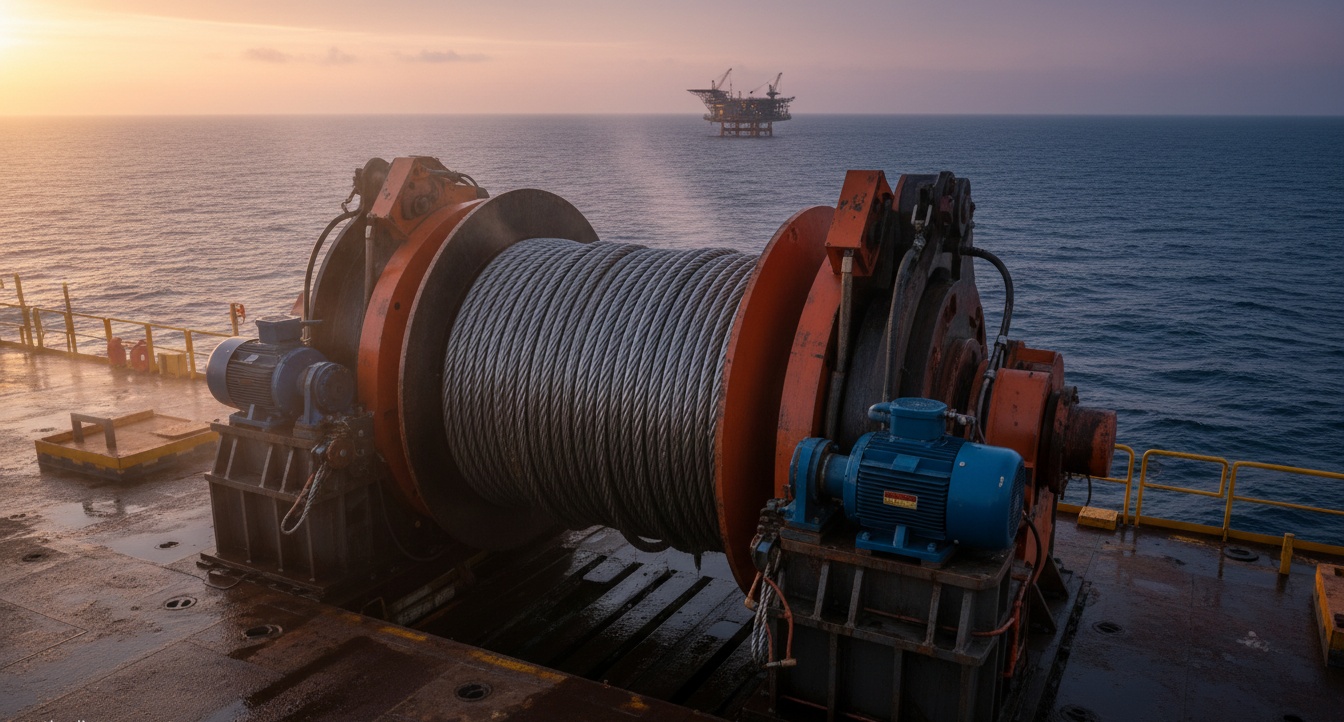

FPSO Hydraulic Winch Specifications: Tandem Mooring Systems for Deepwater Operations

When a Floating Production Storage and Offloading (FPSO) vessel needs to transfer cargo to a shuttle tanker in open ocean conditions, it doesn't dock -- it tandem-moors. This arrangement places two vessels in a line configuration, connected by winches, chains, and hoses, exposed to the full force of wind, current, and swells. In these demanding scenarios, the hydraulic winch for offshore operations is not an accessory -- it is the load-management backbone of the entire transfer operation. Getting the specification right is a matter of safety and operational continuity.

This article walks through the engineering specifications that matter most when selecting or procuring a hydraulic winch for FPSO tandem mooring systems in deepwater environments. Whether you are an FPSO operator, marine engineer, procurement officer, or a technical manager evaluating suppliers for a new build or retrofit, the following sections provide a structured framework for navigating the technical landscape.

Understanding FPSO Tandem Mooring Dynamics

Tandem mooring differs fundamentally from single-point mooring (SPM) or conventional bow-stern berthing. In a tandem configuration, the FPSO remains connected to a stationary or semi-stationary hub -- often a buoy or turret mooring -- while a shuttle tanker approaches from astern and connects in a linear arrangement. The shuttle tanker must remain dynamically positioned, with the hydraulic winch managing the lead and tension in the mooring hawser at all times.

The loads imposed on a hydraulic mooring winch during tandem operations are a function of multiple simultaneous forces:

• Environmental loads: Wind pressure on exposed hulls (which scales nonlinearly with speed), wave-induced surge and heave, and tidal or wind-driven current forces create a constantly shifting load profile on the winch line.
• Vessel drift: Even with dynamic positioning (DP) assistance, residual drift forces accumulate in the mooring hawser. The winch must absorb this without shock-loading the termination.
• Emergency disconnection: Under distress scenarios (engine failure, mooring line parting), the winch must provide controlled release capability -- a function regulated under OCIMF MEG4 guidelines -- without catastrophic backwinding.
• Dynamic load amplification: Vessel motions in a seaway excite the mooring line catenary, generating peak loads that can reach 2x-3x the static mean load. A properly specified winch braking system must absorb this energy safely.

Core Specifications for FPSO Hydraulic Winches

Line Pull and Load Capacity

The primary selection criterion for any deepwater hydraulic winch is the maximum line pull rating. In FPSO tandem mooring, the required line pull is calculated from the environmental design case -- typically a 100-year storm condition per API RP 2SK -- plus a safety factor of 2.5x to 3.0x applied to the breaking load of the mooring hawser.

For most conventional FPSO configurations in water depths from 200 m to 1,500 m, winch line pulls in the 300 kN to 1,500 kN range are typical. Heavier deepwater units -- especially those serving as primary stop-holding winches on VLCC-sized FPSOs -- may require winches rated up to 2,000 kN or beyond.

Hydraulic Drive System Design

The hydraulic circuit is the beating heart of an FPSO winch system. A well-designed hydraulic drive for a mooring winch should deliver:

• Proportional speed control -- allowing the winch operator to fine-tune tension during approach and connection sequences. This is managed via a variable displacement hydraulic motor (typically a bent-axis piston design) driven by a load-sensing hydraulic pump.
• Torque control -- preventing overload conditions from exceeding the hawser's safe working load (SWL). A relief valve set slightly above the maximum design torque provides protection against transient spikes.
• Low heat generation -- in tropical offshore environments, hydraulic system efficiency is paramount. Heat exchangers or air-cooled coolers must be sized for ambient temperatures reaching 50C on exposed deck locations.
• Fail-safe response -- in the event of hydraulic pressure loss, the winch must engage its failsafe braking system automatically. Spring-applied hydraulic-released (SAHR) disc brakes on the motor shaft are the industry standard for this requirement, as specified in ISO 7364.

Braking Systems: SAHR and Failsafe Design

The braking system deserves special attention because it is the primary life-safety component of any mooring winch. Industry experience -- and the lessons from OCIMF incident reporting -- shows that the majority of mooring incidents trace back to brake system failures or inadequate brake holding capacity.

The standard configuration for FPSO hydraulic winches is a dual-brake system:

1. Primary Service Brake (SAHR): A spring-applied, hydraulic-released disc brake mounted on the high-speed shaft of the planetary gearbox. This brake provides operational speed control and is engaged during normal operations. When hydraulic pressure is removed (e.g., during an emergency stop or hydraulic leak), spring force applies the brake automatically.
2. Secondary Emergency Brake: An independently activated fail-safe brake -- often a caliper brake on the drum barrel -- that engages on the load side to provide a secondary holding mechanism if the primary brake is overcome. This brake is activated by dedicated accumulators or spring set, independent of the main hydraulic circuit.

Per OCIMF MEG4 Chapter 7, the combined braking system must be capable of bringing the winch to a full stop within 3 seconds of an emergency stop signal and maintaining full holding load indefinitely without hydraulic pressure. The holding brake must demonstrate a minimum 1.5x factor of safety against the winch maximum pulling force.

Key Standards and Regulatory Framework

FPSO hydraulic winch procurement is not a commodity purchase. Regulatory compliance touches every dimension of the specification. The following table summarizes the principal standards applicable to the design, testing, and certification of offshore hydraulic mooring winches:

IYJ-N Series Integrated Hydraulic Winch for FPSO Applications

The IYJ-N series integrated hydraulic winch from INI Hydraulic was purpose-developed for FPSO, marine, and tandem mooring applications where load capacity, compact integration, and operational reliability are equally important. The design philosophy of the IYJ-N series addresses the technical demands outlined in the preceding sections.

Integrated Design Philosophy

Rather than specifying separate hydraulic motor, gearbox, brake, and drum assemblies from different suppliers -- which introduces interface risk, increases installation footprint, and complicates certification -- the IYJ-N series integrates these components into a single sealed assembly:

• Hydraulic motor: High-efficiency bent-axis piston motor with integrated proportional flow control, delivering smooth speed regulation across the full operating range.
• Planetary gearbox: Helical planetary gear stage with high reduction ratio, providing the torque multiplication needed for high-load mooring without the size penalty of conventional worm-gear designs.
• SAHR Disc Brake: Spring-applied hydraulic-released disc brake with dual brake-pad configuration, providing fail-safe engagement on loss of hydraulic pressure.
• Load measurement pin: Built-in load cell integrated into the mounting structure, providing real-time tension feedback to the vessel's automation system -- a feature increasingly required by modern OCIMF-compliant mooring systems.

Deepwater Operating Envelope

The IYJ-N series is rated for mooring applications in water depths up to and beyond 1,500 meters, with the following operational envelopes that support the FPSO design cases typical of Southeast Asian, West African, and Brazilian deepwater fields:

• Maximum line pull: 300 kN - 1,500 kN (model-dependent; IYJ22.75-ND covers the mid-range segment)
• Drum storage: 200 m - 400 m of 28 mm - 44 mm steel wire rope or equivalent chain
• Hydraulic pressure: 160 bar / 210 bar / 280 bar options
• Corrosion protection: Marine-grade epoxy coating plus stainless steel hardware for salt-water exposed deck mounting
• Optional ATEX / IECEx certification for hazardous area Zone 1 and Zone 2 zones where hydrocarbon atmosphere may be present

Retrofit Compatibility

A common challenge for FPSO operators is integrating new winches into deck layouts that were designed decades ago for different load cases and control architectures. The IYJ-N series addresses this through a modular mounting configuration that is compatible with existing foundation bolt patterns from legacy winch suppliers. Combined with its pre-assembled hydraulic connections (using ISO 3821-rated hose assemblies), the IYJ-N series is designed for retrofits where downtime directly translates to production loss.

For operations using the IYJ3A ordinary hydraulic winch as a lower-specification auxiliary unit For more information on hydraulic drive technology for heavy marine machinery, see the IYH series hydraulic slew drives from the same engineering team at INI Hydraulic., the IYJ-N series can serve as a drop-in upgrade for the primary mooring winch position, providing higher line pull, integrated load measurement, and a failsafe braking system that meets current OCIMF MEG4 requirements.

Selection Checklist for FPSO Hydraulic Winch Procurement

Before issuing a request for quotation (RFQ) for a hydraulic winch for FPSO tandem mooring applications, the following specification elements should be confirmed with the selected supplier. Skipping any of these questions introduces technical and commercial risk into the procurement:

Maintenance Considerations for Offshore Hydraulic Winches

Sustainable uptime on an FPSO requires a maintenance strategy that is planned before the winch is even installed. For hydraulic mooring winches, the maintenance philosophy should follow an hours-based rather than calendar-based interval model, adapted to the operating environment:

• Quarterly visual inspections: Check brake pad wear, hydraulic connection integrity, rope/chain condition, and corrosion accumulation on mounting hardware.
• Every 2,000 operating hours (or annually): Hydraulic oil analysis (particle count per ISO 4406), filter replacement, and seal inspection. Particle contamination is the leading cause of hydraulic motor and valve failures.
• Brake system verification (every 5,000 hours): Torque spring measurement and brake pad thickness inspection. SAHR brake springs lose torque over time due to thermal cycling -- this is a non-negotiable inspection item.
• Major overhaul (every 5 years or per manufacturer schedule): Gearbox oil change, bearing inspection, seal replacement, and load testing to 1.25x maximum line pull per API 16C guidelines.

INI Hydraulic provides documented maintenance manuals, spare parts kits, and remote technical support for operators in Southeast Asia, the Middle East, and Europe -- ensuring that maintenance intervals can be executed without extended production downtime.

Why Supplier Provenance Matters in Offshore Winch Procurement

The offshore marine equipment market has seen significant quality variation between manufacturers, and the consequences of a winch failure during tandem mooring operations -- a runaway winch, a brake that fails to hold under load, or a hydraulic line that ruptures -- are severe. They range from environmental spills to personnel injury and vessel drift.

When evaluating a supplier for an FPSO hydraulic winch, the evaluation should go beyond the data sheet and pricing. The following due diligence steps are recommended:

1. Verify classification society type approval certificates -- these certify that the manufacturing process, materials, and testing protocols have been audited by an independent third party.
2. Request load test certificates for the specific unit type -- ideally from a witnessed FAT (Factory Acceptance Test) with the relevant classification society surveyor present.
3. Review field references in comparable FPSO or offshore vessel applications -- a supplier with a track record in the Gulf of Mexico or North Sea will have encountered the regulatory and operational environment you are operating in.
4. Assess hydraulic engineering capability -- a supplier who designs and assembles their own hydraulic circuits (rather than outsourcing to a third-party integrator) will be better positioned to support customizations and troubleshooting.

INI Hydraulic maintains type approval from multiple classification societies and has supplied winch systems to FPSO and offshore construction vessels operating in the South China Sea, Gulf of Thailand, and West African coastal fields -- regions with some of the most challenging wind and sea state conditions in the world.

Conclusion: Engineering Your Way to Safer Tandem Mooring Operations

The selection of a hydraulic winch for offshore FPSO tandem mooring is a system engineering problem, not a component procurement exercise. The winch must interface with the vessel's hydraulic infrastructure, its mooring hawser system, the automation and monitoring architecture, and the regulatory framework enforced by the vessel's flag administration and classification society.

By understanding the load case requirements, the braking system architecture, the applicable standards (API 16C, OCIMF MEG4, ISO 3821), and the maintenance demands of the operating environment, FPSO operators and procurement engineers can make specification decisions that deliver safe, reliable tandem mooring operations over the full design life of the vessel.

The IYJ-N series integrated hydraulic winch from INI Hydraulic was designed from the ground up to meet these requirements -- combining compact integration, failsafe braking, load measurement, and marine-certified hydraulic engineering in a single package that serves as either a new-build or retrofit solution for deepwater FPSO tandem mooring systems.
