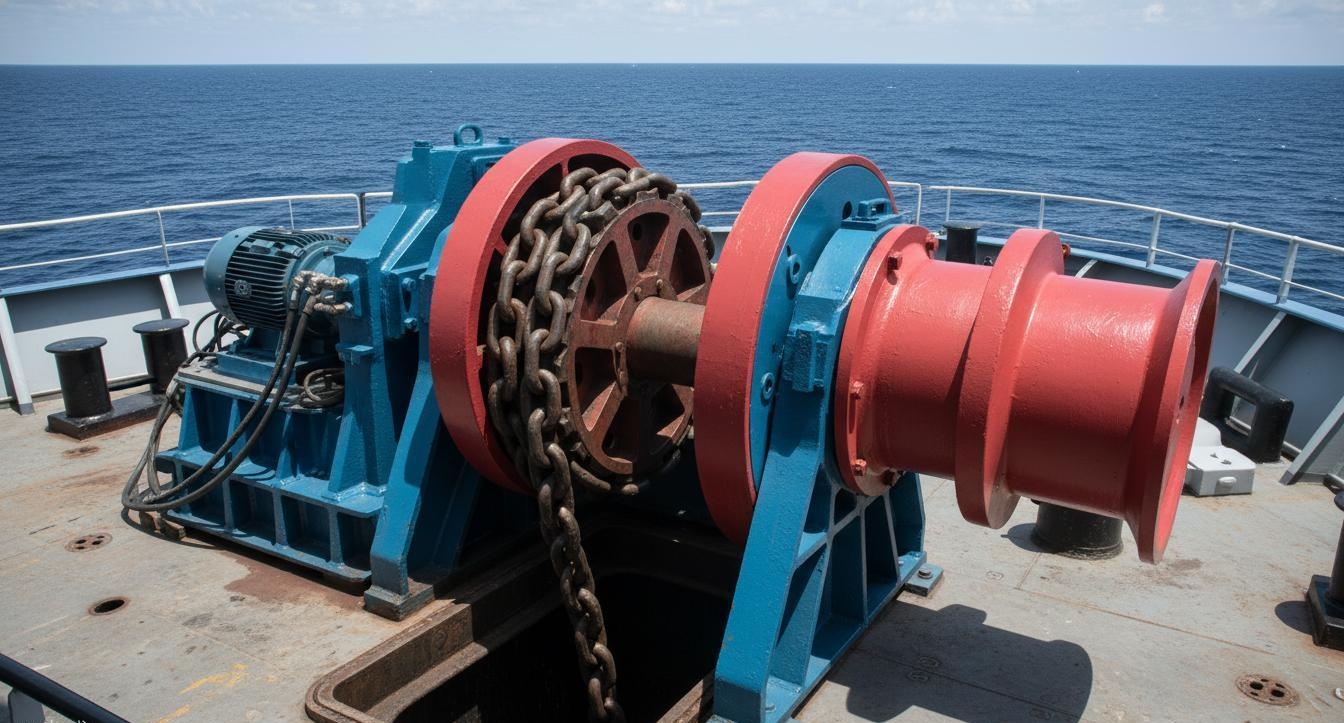

Anchor Winch Chain Wheel Specifications: Compatibility with DIN 766, DIN 764 and ISO Standard Chains

Why "Standard Chain Wheel" Is Not a Universal Specification — The Three Competing Standards

I have spent fifteen years designing hydraulic winch systems at Yining Hydraulic, and the single most costly specification error I encounter in anchor winch procurement is the assumption that "standard chain wheel" means the same thing across all manufacturers. There are three major chain standards in active use globally — DIN 766, DIN 764, and ISO 16726/ISO 67 — and a chain wheel designed for one standard will not safely operate with chain from another standard. The differences are not cosmetic: they involve pocket pitch, root diameter, tooth profile angle, and the ratio of chain diameter to pitch that determines how the chain link seats in the wheel pocket.

DIN 766 is the short-link standard originally developed for general lifting and marine applications. The defining parameter: pitch equals approximately 6 times the chain diameter (6d). This relatively tight link spacing maximizes chain-to-wheel contact area, distributing load across multiple teeth and reducing individual tooth stress. DIN 764 is the long-link standard where pitch equals approximately 8 times the chain diameter (8d). The longer link spacing reduces chain weight per meter and allows larger diameter chain to wrap around tighter-radius wheels. ISO 16726 (and the related ISO 67 for mooring chains) attempts to harmonize these standards internationally but introduces minor dimensional differences that affect compatibility.

The practical consequence of mixing standards: if you install a DIN 766 chain on a DIN 764 chain wheel (or vice versa), the chain links will not fully seat in the wheel pockets. The links will ride on the pocket edges rather than the pocket floor, concentrating load on a line contact instead of a surface contact. The result is rapid pocket edge wear, chain link deformation, and in severe cases, chain jump where the chain climbs out of the pocket under load. I have personally handled warranty investigations where the root cause of catastrophic chain wheel failure was a DIN 764 chain purchased by the vessel operator to replace a worn DIN 766 chain because "the diameter looked the same." According to DIN standards documentation, even chains of identical nominal diameter (e.g., 16mm) from different standards have different pocket geometry requirements.

Chain Wheel Geometry Fundamentals: Pitch Diameter, Outer Diameter, and Root Diameter

A chain wheel (also called a wildcat or chain sprocket) is defined by three critical diameters: pitch diameter (Dp), outer diameter (Da), and root diameter (Df). The pitch diameter is the diameter of the theoretical circle on which the chain links articulate as they wrap around the wheel — it is the functional diameter that determines chain speed for a given wheel RPM. The outer diameter is measured across the tooth tips and is the largest diameter of the wheel. The root diameter is measured across the bottom of the pockets between teeth. Pitch diameter is calculated as Dp = P / sin(180/Z), where P is the chain pitch (link spacing) and Z is the number of pockets (teeth) on the wheel. For a DIN 766 chain with 16mm diameter and 6:1 pitch ratio, the pitch is 96mm, and a 5-pocket wheel has Dp = 96mm / sin(36 degrees) = 163.5mm.

The pocket itself has three critical dimensions: pocket width (must accommodate chain link width plus 0.5-1.5mm running clearance), pocket depth (must accommodate link diameter plus 1-2mm for debris clearance), and pocket pitch angle (must match the chain pitch angle exactly to prevent link-to-pocket mismatch). Pocket width tolerance is the most critical dimension — too tight and the chain binds during engagement; too loose and the chain wanders laterally, causing uneven tooth wear. The standard pocket width tolerance for marine anchor winch wheels is +0.3mm to +0.8mm above the nominal chain link width.

DIN 766 Chain Specifications: The Short-Link Standard Used in European Marine Applications

DIN 766 is the dominant chain standard for European-origin marine anchor winches and the standard most Yining Hydraulic anchor winches are designed around for the European and Middle Eastern markets. The standard specifies the relationship between chain diameter (d) and link dimensions: pitch (t) = 6d, inside width (b1) = 3.5d for common marine chain sizes. For a 16mm DIN 766 chain: pitch = 96mm, inside width = 56mm, inside length = 80mm. The tolerance on pitch is +0.033d — meaning for 16mm chain, the pitch tolerance is +0.53mm across a link.

Chain wheel design for DIN 766 requires a pocket that accommodates the full link profile: a horizontal link sits in the pocket with its long axis aligned with the wheel axis, while the vertical link (connecting adjacent horizontal links) passes through the inter-tooth gap. The tooth profile must provide sufficient clearance for the vertical link to enter and exit the pocket without interference as the wheel rotates. At Yining Hydraulic, our IYM series anchor winches are designed with DIN 766 pocket geometry as the default, with DIN 764 and ISO pocket geometries available as specified options. The chain wheel is machined from 42CrMo alloy steel, quenched and tempered to HRC 45-50, with induction-hardened tooth flanks to HRC 55-58 for wear resistance.

DIN 764 Chain Specifications: The Long-Link Standard for High-Chain Diameter Applications

DIN 764 specifies a longer pitch-to-diameter ratio (8d) compared to DIN 766 (6d), producing chains that are approximately 33% longer per link for the same chain diameter. This longer pitch serves two purposes: it reduces chain weight per meter (fewer links per meter means less steel weight), and it allows the chain to wrap around smaller-radius wheels (the longer link can articulate over a tighter curve without binding). For applications where the anchor winch must handle large-diameter chain (20mm+) but the vessel has limited wildcat space, DIN 764's long-pitch geometry is the preferred choice.

The DIN 764 chain wheel pocket geometry is fundamentally different from DIN 766: the pocket is longer (to accommodate the longer link), shallower (because the link angle entering the pocket is less acute), and the tooth profile is more open to allow the longer vertical link to clear. A common procurement trap: Chinese manufacturers sometimes quote "DIN standard chain wheel" without specifying 766 or 764, assuming the buyer wants the domestic default (which is typically DIN 764 in the Chinese market). The buyer receives a DIN 764 wheel for their DIN 766 chain and the incompatibility surfaces during installation. I strongly recommend specifying the exact standard and chain diameter on the purchase order, not relying on the term "standard." Per ISO 16726:2018 mooring chain wheel specifications, the standard requires explicit marking of the chain standard and diameter on the wheel itself.

ISO 16726 Chain Wheels: How the International Standard Differs from DIN Versions

ISO 16726 (Ships and marine technology — Chain wheels for stud-link anchor chains) is the international standard that aims to unify the DIN, JIS, and national chain wheel specifications under a single global framework. The ISO standard covers chain diameters from 12.5mm to 162mm (the full range applicable to commercial vessels), and it specifies pocket geometry, material requirements, and testing protocols. The key difference from DIN: ISO 16726 specifies tighter pocket tolerances — +0.3mm vs DIN's typical +0.5mm — which means an ISO-compliant chain wheel will accept DIN chain (the chain is slightly undersize relative to the pocket), but a DIN-tolerance wheel may not meet ISO acceptance criteria.

For practical procurement: an ISO 16726 chain wheel is a safe choice for use with DIN 766 chain of the same nominal diameter because the ISO pocket is dimensionally within the DIN tolerance band on the tight side. The reverse — using a DIN wheel with ISO chain — is risky because the ISO chain may be manufactured to the tighter tolerance and the DIN wheel pocket may provide insufficient running clearance, causing binding in the first 50-100 cycles as the chain and wheel wear into each other. At Yining Hydraulic, we manufacture chain wheels to ISO 16726 tolerance as our baseline, with DIN 766 and DIN 764 as specified options when the vessel operator requires exact compatibility with an existing chain inventory.

Material Hardness and Surface Treatment: Why Chain Wheel Wear Rate Matters More Than Price

The chain wheel is the highest-wear component in an anchor winch system because every raising/lowering cycle involves metal-on-metal sliding contact between the chain links and the wheel pockets under load. The material specification — alloy steel grade, heat treatment process, and surface hardening method — directly determines the wheel's service life, and a wheel that costs 20% less initially but wears out in 3 years instead of 10 is a poor investment.

Induction hardening of tooth flanks is the cost-effective sweet spot for anchor winch chain wheels. The process selectively heats and quenches the tooth contact surfaces, creating a hard wear-resistant case (HRC 55-58, depth 2-4mm) while maintaining a tougher, more impact-resistant core. The core toughness is essential — if the entire wheel were through-hardened to HRC 55+, it would be brittle and susceptible to impact fracture when the chain engages under shock load. Per ASTM A391 alloy steel chain specifications, the combination of surface hardness for wear resistance and core toughness for impact resistance is the standard engineering approach for marine chain system components.

Surface treatment for corrosion protection: zinc phosphate coating (base layer) followed by epoxy marine paint (200-300 micron dry film thickness) provides 5-8 years of corrosion protection in salt-spray environments. For offshore platforms and vessels operating in the splash zone, additional sacrificial anode protection (zinc or aluminum anodes bolted to the chain wheel housing) extends protection to 10-15 years. The incremental cost of corrosion protection — approximately US$80-120 per chain wheel — is approximately 0.5% of the cost of premature wheel replacement due to corrosion pitting that requires complete wheel disassembly and crane-assisted removal. At Yining Hydraulic, our standard chain wheel specification is 42CrMo Q+T with induction-hardened teeth and epoxy marine coating — the minimum we recommend for any marine anchor winch application.
